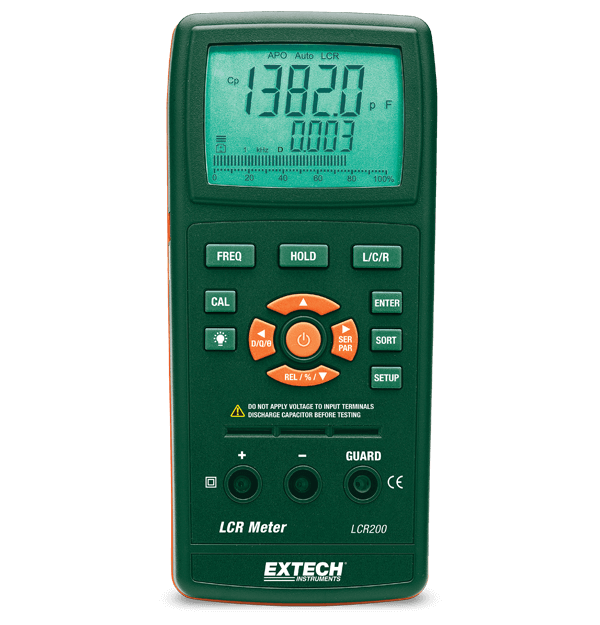

Extech LCR200
Passive Component LCR Meter
The LCR200 is a passive component LCR meter. Discover the tremendous value with a range of features that help this meter provide the precise measurements you need. See simultaneous 20,000/2,000 count display of the primary parameter on the high contrast backlit display. You can set Hi/Lo limits using absolute values or percentages. Open and Short Zero removes unwanted stray impedances from the measurement. Use the built-in test fixture or external test leads (included). The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries. Complete with test leads and 9V battery.
Specifications
| General | |
|---|---|
| Capacitance | 20pF, 200pF, 2000pF, 20.000nF, 200.00nF, 2000.0nF, 20.000µF, 200.00µF, 2.0000mF, 20.00mF |
| Dissipation Factor [DF] | 0.000 to 1999 |
| Inductance | 20µH, 200µH, 2000.0µH, 20.0000mH, 200.00mH, 2000.0H, 20.000H, 200.00H, 2000.0H |
| Inductance Basic Accuracy | ±(0.5% of reading + 5 digits) |
| Phase | ±90° |
| Quality Factor [Q] | 0.000 to 1999 |
| Resistance | 20.00Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ, 200.0MΩ |
| Test Frequency | 100Hz/120Hz/1kHz/10kHz/100kHz |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.6 × 3.5 × 1.6" (193 × 88 × 41mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 14.8oz (420g) |
