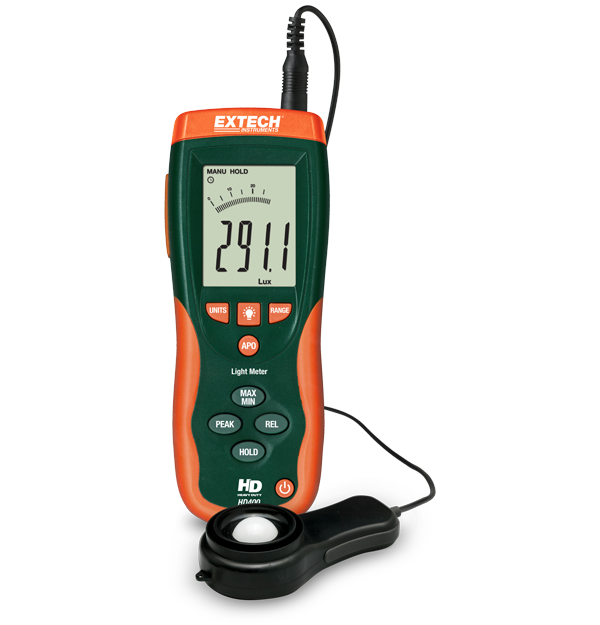

Extech HD400
Heavy Duty Light Meter
The HD400 Heavy Duty Light Meter measures up to 400 kLux (40,000 Fc) with 0.1 Lux (0.01 Fc) resolution. It features a 5% accuracy, peak mode (10 µs), relative mode, min/max, and data hold functions. The HD400 has a backlit LCD display with a 40 segment bar graph and a rugged double molded housing. Comes complete with light sensor with 1 m (3ft) cable and protective cover, software with USB cable, hard carrying case, and 9 V battery.
Specifications
| General | |
|---|---|
| Cosine and Color Corrected | Yes |
| Light [Foot Candle] | 40, 400, 4000, 40kFc |
| Light [Foot Candle] Basic Accuracy | ±5% |
| Light [Foot Candle] Max Resolution | 0.01Fc |
| Light [Lux] | 400, 4000, 40k, 400kLux |
| Light [Lux] Basic Accuracy | ±5% |
| Light [Lux] Max Resolution | 0.1Lux |
| PC Interface | USB with software included |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.7 × 3.1 × 1.6" (170 × 80 × 40mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 13.7oz (390g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD400 Software
User Manual
Extech HD400 User Manual
Datasheet
Extech HD400-HD450 Datasheet
Certification
Extech HD400 Declaration of Conformity
