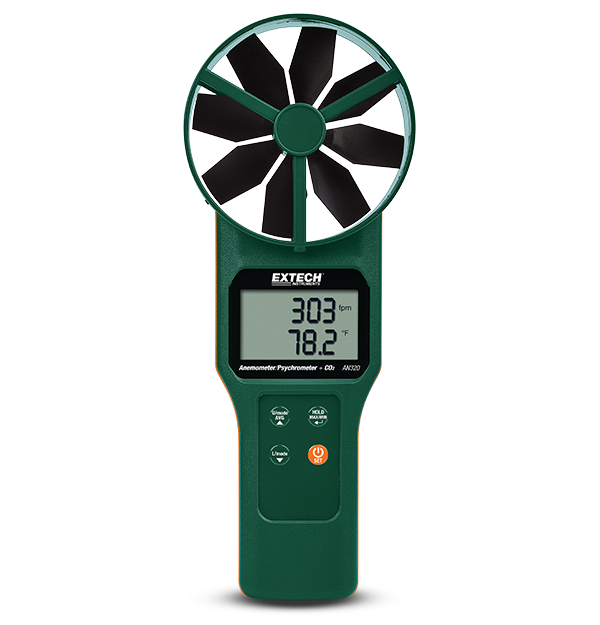

Extech AN320
Large Vane CFM/CMM Anemometer/Psychrometer plus CO2
The Extech AN320 is a Large Vane CFM/CMM Anemometer/Psychrometer plus CO2. This meter measures air velocity, air flow, relative humidity, wet bulb, dew point and carbon dioxide. Extech’s Large Vane Thermo-Anemometer series allows for more precise readings on larger size ducts. It includes min/max, data hold, and auto power off functions. Complete with 4 AAA batteries and hard carrying case.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 40 to 5900ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±1.5% |
| Air Velocity [m_s] | 0.2 to 30m/s |
| Air Velocity [m_s] Basic Accuracy | ±1.5% |
| Air Volume [CFM] | 0 to 99999 CFM |
| Air Volume [CFM] Max Resolution | 0.1CFM |
| Air Volume [CMM] | 0 to 99999 CMM |
| Air Volume [CMM] Basic Accuracy | 0.1CMM |
| Carbon Dioxide [CO2] | 0 to 9999ppm |
| Dew Point | 23 to 140°F (-5 to 60°C) |
| Relative Humidity | 0.1 to 99.9% |
| Relative Humidity Basic Accuracy | ±3% |
| Temperature [Air] | -4 to 140°F (-20 to 60°C) |
| Temperature [Air] Basic Accuracy | ±0.6°C |
| Wet Bulb | -4 to 140°F (-20 to 60°C) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 10.6 × 4.2 × 2" (269 × 106 × 51mm) |
| Power | 4 × AAA (1.5V) batteries |
| Warranty | 1 year |
| Weight | 7oz (200g) |
Resources & Support
User Manual
Extech AN320 User Manual GB
Certification
Extech AN320 Declaration of Conformity
Datasheet
Extech AN3xx Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
