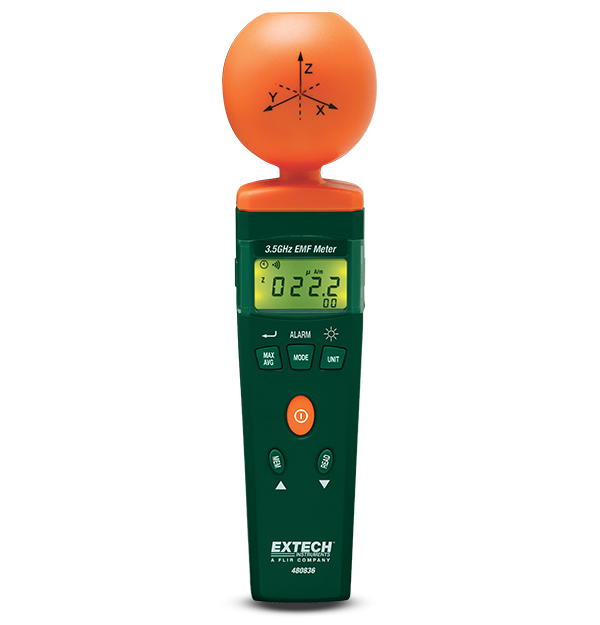

Extech 480836
RF EMF Strength Meter
This RF EMF Strength Meter monitors high frequency radiation in the 50MHz to 3.5GHz range. Ideal for mobile phones, cell phones, base stations, locating RF hotspots, wireless network (Wi-Fi) RF detection, RF"Electrosmog" detection, and microwave leakage. It features non-directional measurement with 3-channel (triaxial) measurement probe, Max Hold and Average functions, and manual store/recall of up to 99 data sets. In addition, there is an audible alarm with a user-selectable threshold. The meter comes complete with a 9V battery and carrying case.
Specifications
| General | |
|---|---|
| Alarm | Audible with adjustable threshold with On/Off |
| Frequency Bandwidth | 50MHz to 3.5GHz (Measurement optimized for 900MHz, 1800MHz and 2.7GHz) |
| Memory | Manual store/recall of 99 sets |
| RF Electromagnetic Field | 20mV/m to 108.0V/m, 53µA/m to 286.4mA/m, 1µW/m² to 30.93W/m², 0µW/cm² to 3.093mW/cm² |
| RF Electromagnetic Field Max Resolution | 0.1mVm, 0.1mA/m, 0.1mW/m², 0.001mW/cm² |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 9.3 × 2.4 × 2.4" (237 × 60 × 60mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 7oz (200g) |
Resources & Support
User Manual
Extech 480836 User Manual
Datasheet
Extech 480836 Datasheet
User Manual
Extech 480836 User Manual GB
