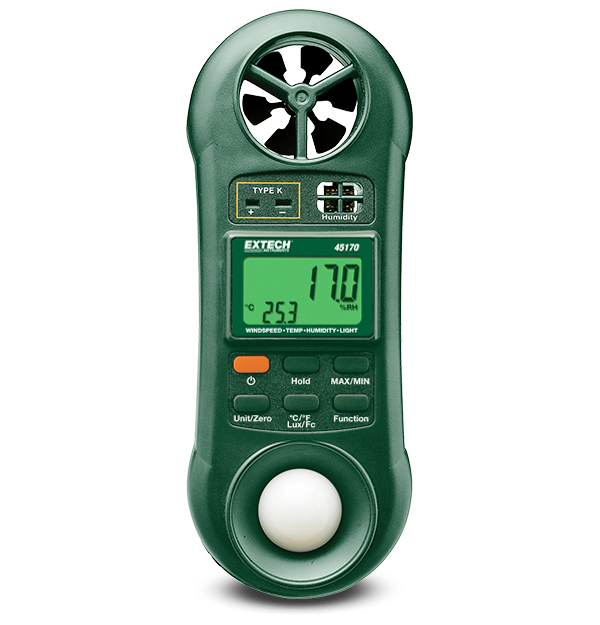

Extech 45170
4-in-1 Environmental Meter
This 4-in-1 meter measures Humidity, Temperature, Air Velocity and Light. The dual LCD simultaneously displays Temperature and Air Velocity or Relative Humidity. High Temperature air or surface measurements can be made using the built-in Type K input. Comes complete with built-in Humidity sensor, Light sensor and Vane wheel, wrist strap, and 9-Volt battery.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 80 to 5910 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% |
| Air Velocity [ft_min] Max Resolution | 10ft/min |
| Air Velocity [km_h] | 1.4 to 108km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% |
| Air Velocity [km_h] Max Resolution | 0.1km/h |
| Air Velocity [knots] | 0.8 to 58.3 knots |
| Air Velocity [knots] Basic Accuracy | ±3% |
| Air Velocity [knots] Max Resolution | 0.1knots |
| Air Velocity [mph] | 0.9 to 67MPH |
| Air Velocity [mph] Basic Accuracy | ±3% |
| Air Velocity [mph] Max Resolution | 0.1MPH |
| Air Velocity [m_s] | 0.4 to 30m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% |
| Air Velocity [m_s] Max Resolution | 0.1m/s |
| Light [Foot Candle] | 0 to 1860Fc |
| Light [Foot Candle] Basic Accuracy | ±(5% of reading + 8 digits) |
| Light [Foot Candle] Max Resolution | 0.1Fc |
| Light [Lux] | 0 to 20,000Lux |
| Light [Lux] Basic Accuracy | ±(5% of reading + 8 digits) |
| Light [Lux] Max Resolution | 1Lux |
| Relative Humidity | 10 to 95% |
| Relative Humidity Basic Accuracy | ±4% |
| Relative Humidity Max Resolution | 0.10% |
| Temperature [Air] | 32 to 122°F (0 to 50°C) |
| Temperature [Air] Basic Accuracy | ±2.5°F (1.2°C) |
| Temperature [Air] Max Resolution | 0.1° |
| Temperature [Type K] Max Resolution | -148°F to 2372°F (-100°C to 1300°C) |
| Temperature [Type N] | ±(1% of reading +2°F/1°C) |
| Temperature [Type N] Basic Accuracy | 0.1° |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.1 × 2.4 × 1.3" (156 × 60 × 33mm) |
| Power | 1 × 9V battery |
| Vane | 1.2" (31mm) |
| Warranty | 2 years |
| Weight | 5oz (160g) |
