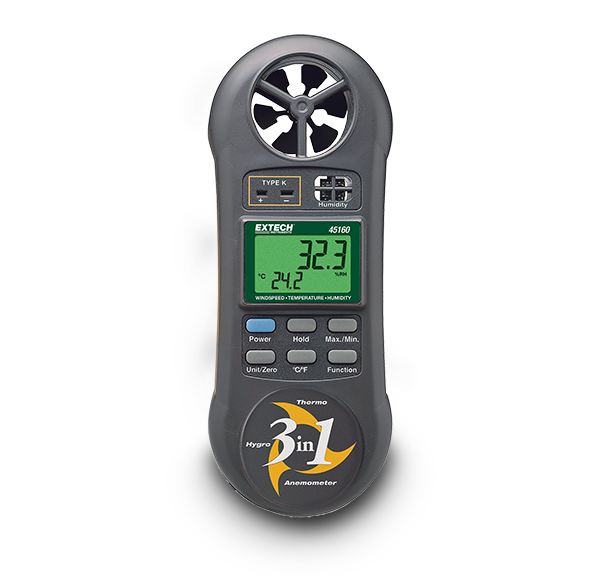

Extech 45160
3-in-1 Humidity, Temperature and Airflow meter
The Extech 45160 is a rugged 3-in-1 meter that measures humidity, temperature and air velocity. High temperature measurements can be made using the Type K thermocouple input. Features include data hold, min/max, auto power off with disable, and low battery indication. Comes complete with wrist strap and 9 V battery.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 80 to 5910 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% |
| Air Velocity [ft_min] Max Resolution | 10ft/min |
| Air Velocity [km_h] | 1.4 to 108km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% |
| Air Velocity [km_h] Max Resolution | 0.1km/h |
| Air Velocity [knots] | 0.8 to 58.3 knots |
| Air Velocity [knots] Basic Accuracy | ±3% |
| Air Velocity [knots] Max Resolution | 0.1knots |
| Air Velocity [mph] | 0.9 to 67MPH |
| Air Velocity [mph] Basic Accuracy | ±3% |
| Air Velocity [mph] Max Resolution | 0.1MPH |
| Air Velocity [m_s] | 0.4 to 30m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% |
| Air Velocity [m_s] Max Resolution | 0.1m/s |
| Relative Humidity | 10 to 95% |
| Relative Humidity Basic Accuracy | ±4% |
| Relative Humidity Max Resolution | 0.1% |
| Temperature [Air] | 32 to 122°F(0 to 50°C) |
| Temperature [Air] Basic Accuracy | ±2.5°F/±1.2°C |
| Temperature [Air] Max Resolution | 0.1°F/0.1°C |
| Temperature [Type K] Max Resolution | -148° to 2372°F (-100° to 1300°C ) |
| Temperature [Type N] | ±(1% of reading +2°F/1°C) |
| Temperature [Type N] Basic Accuracy | 0.1°F/ 0.1°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.1 × 2.4 × 1.3" (156 × 60 × 33mm) |
| Power | 1 × 9V battery |
| Vane | 1.2" (31mm) |
| Warranty | 2 years |
| Weight | 5oz (160g) |
Resources & Support
User Manual
Extech 45160 User Manual GB
Datasheet
Extech 45160 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
