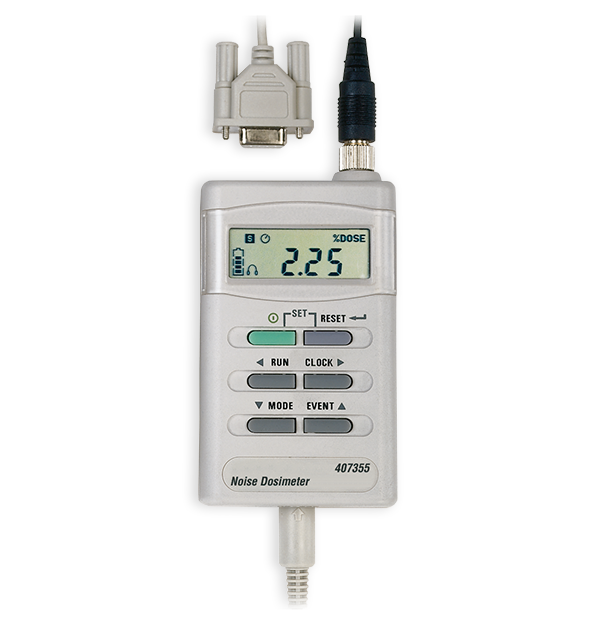

Extech 407355
Noise Dosimeter/Datalogger with PC Interface
The Extech 407355 is a Personal Noise Dosimeter/Datalogger which performs OSHA and IEC noise accumulation surveys to measure total sound exposure over an 8-hour period. It datalogs up to 4500 readings when used as a sound level meter, while also capable of storing up to 5 dosimeter surveys. Data includes start and stop time, percent dose, TWA, and peak flags. Complete with belt clip, clip on 1.3 cm (0.5 in) microphone with a 0.8 m (2.6 ft) cable, software, 4 AAA batteries, mini screwdriver, and carrying case.
Specifications
| General | |
|---|---|
| Criterion | 80, 84, 85 or 90dB |
| Exchange Rate | 3, 4, 5 or 6 dB |
| High Level | 115dB |
| Memory | 5 surveys |
| Microphone | 1/2 inch electret condenser with 31” cable |
| Peak | 140dB |
| Response Time | Fast/Slow |
| Sound Range [dB] | 70 to 140dBA |
| Sound Range [dB] Max Resolution | 0.1dB |
| Threshold | 70-90 (1db steps) |
| Weighting | A |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.2 × 2.5 × 1.3" (106 × 64 × 34mm) |
| Power | 4 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8oz (227g) incl. batteries |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407354 Software
Software Download
Extech 407355 Software v10.02
Datasheet
Extech 407355 Datasheet
User Manual
Extech 407355 User Manual GB
