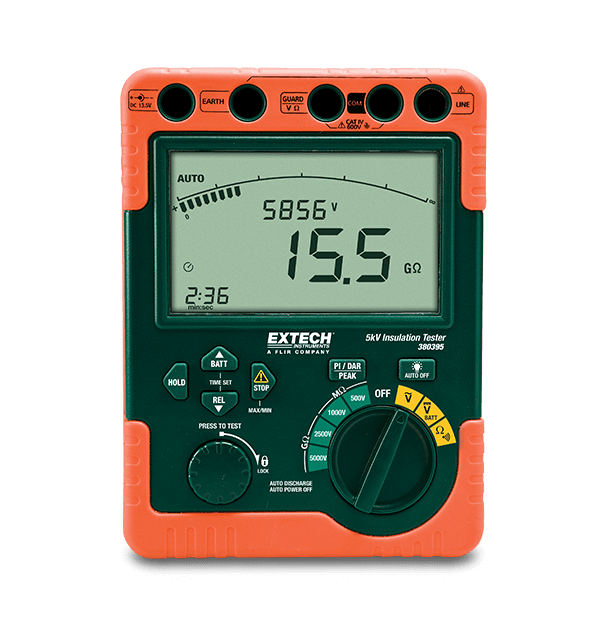

Extech 380395
High Voltage Digital Insulation Tester (110V)
With the Extech 380395, measure insulation resistance up to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V. Its features include polarization index measurement (PI), dielectric absorption ratio measurement (DAR), AC/DC voltage measurement up to 600 V, peak and relative functions, and a 1 min to 15 min timer function for IR measurements. Comes with test leads, eight C batteries, 120 V AC adaptor, heavy duty carrying case, and a user manual.
Resources & Support
User Manual
Extech 380395 380396 User Manual GB
Certification
Extech 380395 Declaration of Conformity
Datasheet
Extech 380395 Datasheet
User Manual
Extech 380395 380396 User Manual
Datasheet
Extech 380395 380396 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
