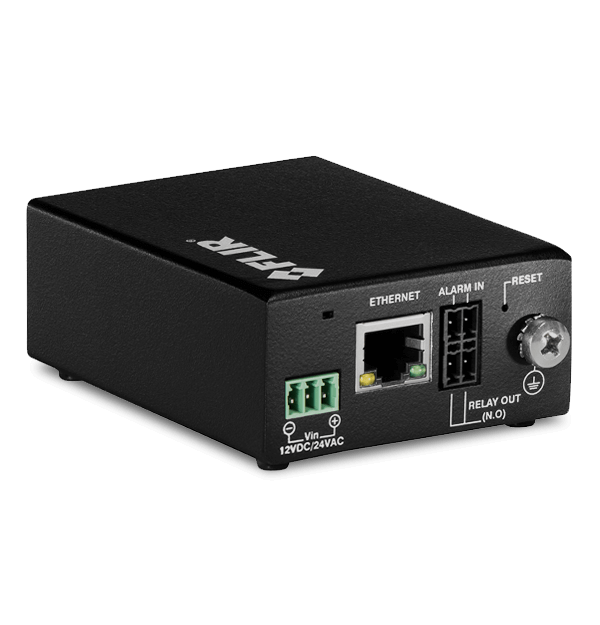

TRK-101
Analytics Encoder
The TRK-101 analyzes video signals and sends alarm notifications when people, vehicles and objects cross perimeter lines, enter pre-defined regions, or are left behind or removed from a scene. Users can define perimeters and customize what to detect. The TRK-101 has both analog and IP streaming video outputs that enable hybrid connectivity to both legacy and IP-based CCTV networks. The encoder also integrates with existing fixed analog cameras for retrofit of existing installations.
Specifications
| Compliance & Certifications | |
|---|---|
| Safety | UL, CE |
| Environmental | |
|---|---|
| Electromagnetic Interference | (EMC) FCC 47 CFR Part 15, Subpart B, Class A; CE Class A |
| Environmental | RoHS |
| Operating Humidity | 5% to 95% (non-condensing) |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| General | |
|---|---|
| Dimensions [inches] | 2.7 x 1.42 x 4.61" (W x H x D) |
| Dimensions [mm] | 68.5 x 36 x 118mm (W x H x D) |
| H.264 Frame Rate [PAL_NTSC] | D1 12/15 FPS VGA 18 FPS 2CIF 25/30 FPS CIF 25/30 FPS |
| Mounting | Shelf/optional rack-mounting (single-unit or multiple-unit accessory) |
| Number of Intelligent Video Analysis Channels | 1 |
| Operating System | Windows 7, 8 and 8.1, 10 |
| Power Consumption | DC: 3.6W, AC: 6W |
| Storage on the Edge | 3,800Mb event recording |
| Voltage | 12VDC (+/-10%), 24VAC |
| System Integration | |
|---|---|
| Alarms_Commands | TCP/IP, HTTP |
| Browsers | Microsoft Edge in IE mode (Microsoft will support IE mode in Edge at least until 2029) |
| Ethernet [IEEE 8023_8023u] | 1 x RJ45 interface |
| IN_Alarm Input | 1x dry contact |
| OUT_Relay Output | 1x relay output (rated load 0.3A@12VDC; 1A@30VDC; 0.25A@24VAC, 50/60Hz) |
| Physical Connector | 1x BNC 75Ω |
| Services and Protocols | TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP |
| TV Standard | Composite 1Vp-p – NTSC or PAL |
| Video & Recording | |
|---|---|
| Bit Rate | CBR (128Kbps – 4Mbps), VBR |
| IP Video Streaming | H.264, MPEG-4 SP, MJPEG |
| Video Streaming | RTP/RTSP |
