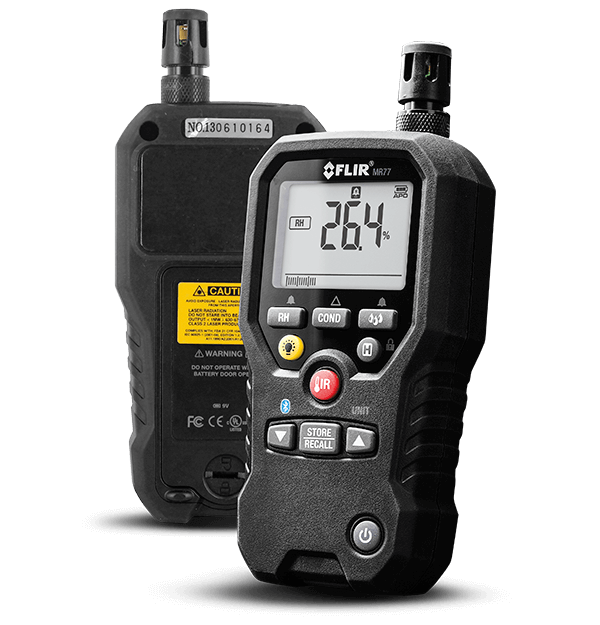

FLIR MR77
5-in-1 Moisture Meter with METERLiNK®
729,00 € ex. VAT
874,80 € inc. approx. VAT (20 %)
The FLIR MR77 has everything you need for moisture remediation or HVAC: a pinless moisture sensor and pin probe, a temperature and relative humidity sensor, and an IR thermometer. The meter includes Bluetooth® for remote viewing and sharing, as well as METERLiNK® technology to wirelessly embed readings into radiometric infrared images on compatible FLIR thermal cameras. Made with field-replaceable sensors, the MR77 is engineered to help you get more done in less time.
Connect wirelessly to your meter
All-in-one tool featuring an integrated pinless moisture sensor, a pin-type probe, a temperature and relative humidity sensor, and an IR thermometer
Wirelessly connect to a compatible mobile device to share data and integrate readings onto images from FLIR thermal cameras.
The double-molded, rubberized case is shock-resistant from drops as high as two meters to bolster reliability and durability.
Specifications
| Highlighted | |
|---|---|
| IR Temperature | Range -4 to 392°F, -20 to 200°C / Basic Accuracy +/- 3.5% |
| Pin Moisture | Range 0 to 99% WME / Basic Accuracy +/- 5% |
| Pinless Moisture | Range 0 to 99.9 / Basic Accuracy Relative |
| Sensor Temperature | Range -18 to 170°F, -28 to 77°C / Basic Accuracy +/- 3.6°F, 2°C |
| Relative Humidity | Range 0 to 99% RH / Basic Accuracy +/- 2.5% RH |
| Imaging & Optical | |
|---|---|
| Sensor Temperature | Range -18 to 170°F, -28 to 77°C / Basic Accuracy +/- 3.6°F, 2°C |
| Measurement & Analysis | |
|---|---|
| IR Distance to Spot Ratio | 8 : 1 in |
| IR Emissivity | Range 0.95 (fixed) |
| IR Temperature | Range -4 to 392°F, -20 to 200°C / Basic Accuracy +/- 3.5% |
| Pin Moisture | Range 0 to 99% WME / Basic Accuracy +/- 5% |
| Pinless Moisture | Range 0 to 99.9 / Basic Accuracy Relative |
| Pinless Moisture Depth Max | 0.75 inches (19mm) |
| Communication & Data Storage | |
|---|---|
| Bluetooth range max | 32 ft (10 m) |
| General | |
|---|---|
| Packaging Size | 13.5 cm x 11 cm x 30 cm (5.3? x 4.8? x 11.8?) |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, FCC |
| Drop test | 6.5 ft (2 m) |
| Relative Humidity | Range 0 to 99% RH / Basic Accuracy +/- 2.5% RH |
| Vapor Pressure | Range 0 to 20.0kPA / Basic Accuracy +/- 2% |
| Warranty | Limited Lifetime |
