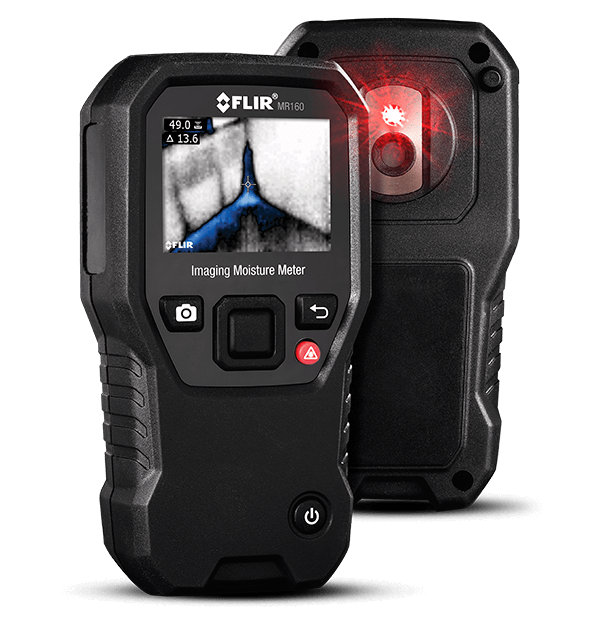

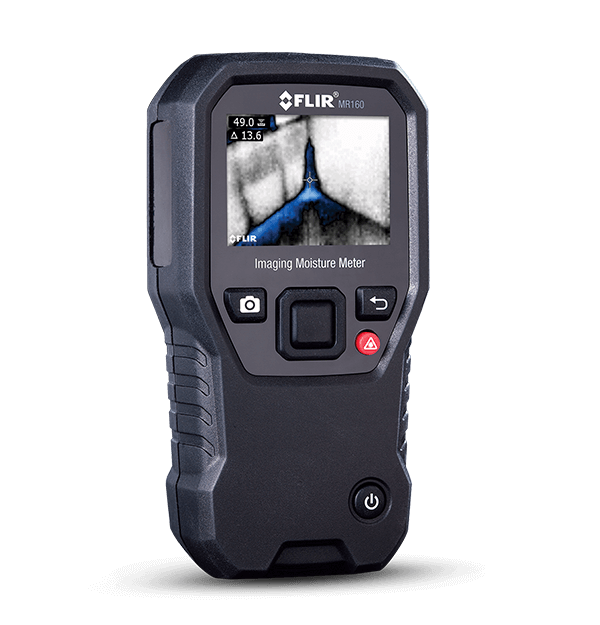

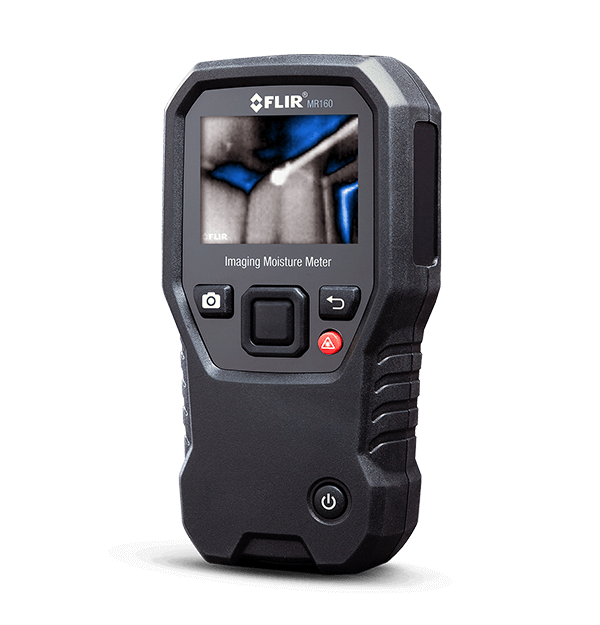

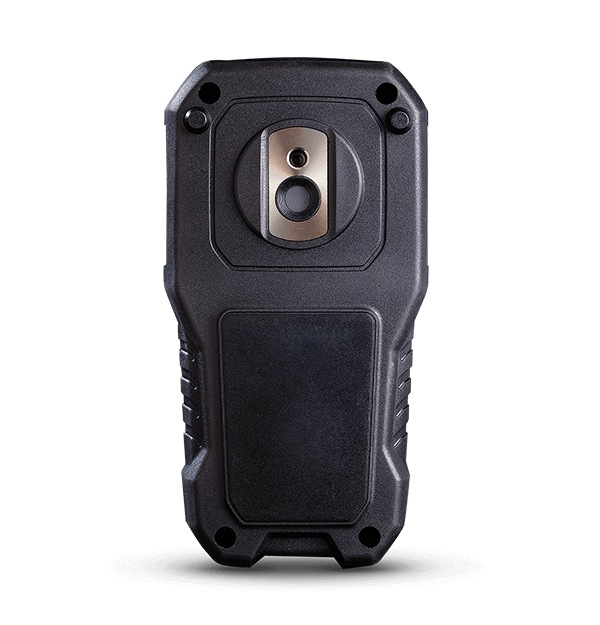

FLIR MR160
IGM™ Moisture Meter
719,00 € ex. VAT
862,80 € inc. approx. VAT (20 %)
Featuring Infrared Guided Measurement (IGM), the MR160 helps you quickly target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. The MR160 can serve as your go-to troubleshooting tool right out of the box — or as the perfect complement to any high resolution thermal camera you already own.
Knowing where to look is half the battle
Easily investigate insulation and moisture issues using MR160's pinless technology or external pin probe for both non-destructive and contact measurements.
Use the built-in thermal imager to locate areas of moisture. Verify the moisture level using pin and pinless moisture measurement.
Rugged design, small form factor, and internal rechargeable battery for convenience to carry with you
Specifications
| Highlighted | |
|---|---|
| Thermal Image Resolution | 4800 pixels (80 × 60) |
| Pin Moisture Groups | 9 material groups |
| Imaging & Optical | |
|---|---|
| Field of View [W x H] | 51° × 38° |
| Image Display | Color moisture alert |
| Laser Orientation | Single laser pointer to center of thermal image |
| Minimum Focus Distance | 10cm (4") |
| Spectral Response | 8–14µm |
| Thermal Image Resolution | 4800 pixels (80 × 60) |
| Thermal Imaging Detector | FLIR Lepton® microbolometer |
| Measurement & Analysis | |
|---|---|
| Image Calibration | Automatic |
| Image Frame Rate | 9 Hz |
| Measurement Resolution | 0.1 |
| Pin Moisture Groups | 9 material groups |
| Pin Moisture via Ext Probe Range [Accuracy] | 0–100% WME (± 5%) |
| Pinless Measurement Depth | 0.75" (19mm) Max |
| Pinless Moisture Range | 0–100 relative measurement |
| Response Time Pin Mode | 750ms |
| Response Time Pinless | 100ms |
| Thermal Sensitivity | <0.15°C |
| Communication & Data Storage | |
|---|---|
| Saved Image File format | BMP with measurement values overlaid |
| Stored Image Capacity | 9999 images |
| Power | |
|---|---|
| Battery | 3.7 V, 3000 mAh Li-ion rechargeable via micro USB |
| Battery power_Cont Run Time | 18 hours max |
| Battery power_Typical Usage | 4 work weeks |
| Power Requirements | Integrated rechargable battery |
| General | |
|---|---|
| Dimensions [H x W x L] | QVGA (320 x 240 pixel) 2.3" 64k color TFT |
| Packaging Size | 12.1 cm x 14 cm x 33.1 cm |
| Environmental & Certifications | |
|---|---|
| Agency Approvals | FCC class B, CE, UL |
| Certification Standards | EN61326 (EMC), EN61010 (battery + charger), EN60825-1 class 2 (Laser) |
| Drop test | 9.8’ (3m) |
| Warranty | 10 year |
