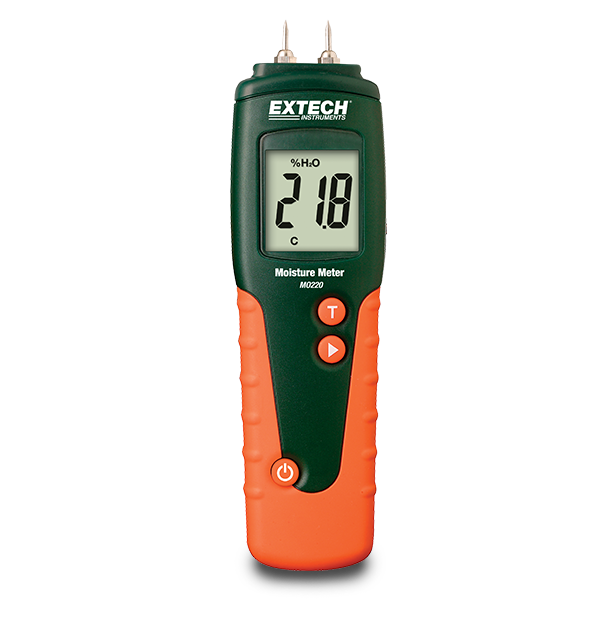

Extech MO220
Wood Moisture Meter
The Extech MO220 is specifically designed for monitoring moisture in wood. The memory contains 8 wood groups with calibrations for approximately 170 species of wood. Measurements can be taken using the integral pin electrodes or the included heavy duty remote probe. It is designed in a rugged, double molded housing construction and is pocket sized for one-handed operation. The MO220's functions include calibration check, user settable auto power off (1 to 9 minutes) with disable, and low battery indication. Complete with protective cap, temperature probe, heavy duty remote moisture probe, replacement measurement pins, two AAA batteries, and a soft case.
Specifications
| General | |
|---|---|
| Measurement Principle | Electrical resistance |
| Sensor Type | Integrated, replaceable contact pins, 0.3" (8mm) |
| WME Moisture Content [Pin] | 6 to 44% |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.1 × 1.6 × 1.0" (130 × 40 × 25mm) |
| Display | Segment LCD |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 3.5oz (100g) |
