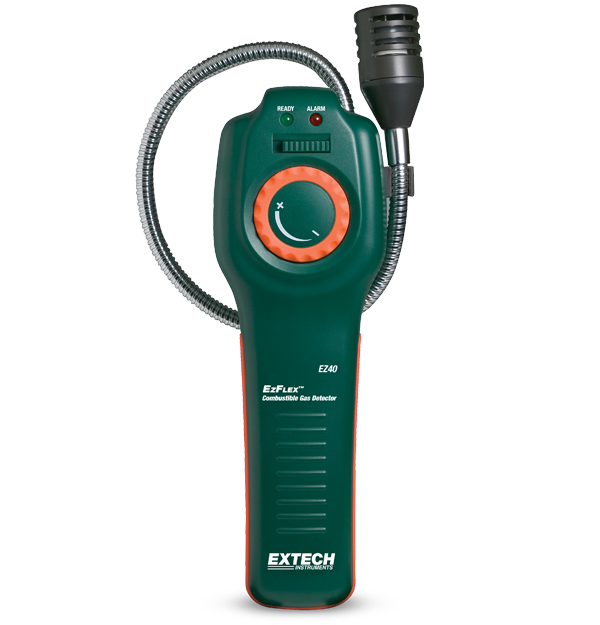

Extech EZ40
EzFlex™ Combustible Gas Detector
The Extech EZ40 EzFlex Combustible Gas Detector has a 16 inch gooseneck for easy access into hard to reach locations. Detector has a high sensitivity and a one hand operation with thumb controlled sensitivity adjustments to eliminate the background gas levels. It has a visible and audible alarm at 10% (LEL) lower explosive limited for methane. This gas detector will help you locate the smallest leaks. Complete with 3 C batteries.
Specifications
| General | |
|---|---|
| Alarm | Visible and Audible @ 10% LEL for Methane |
| Duty Cycle | Intermittent |
| Gas Detection | Natural Gas, Methane, Ethane, Propane, Butane, Acetone, Alcohol, Ammonia, Gasoline, Jet Fuel, Hydrogen Sulfide, Smoke, Industrial Solvents, Lacquer Thinner, Naphtha, Steam Carbon Monoxide (indication only, not to quantify) |
| Response Time | < 2 seconds (up to 40% LEL) |
| Sensor Type | Solid State |
| Warm_up Time | Approx. 1 minute |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8.7 × 2.83 × 1.8" (221 × 72 × 46mm) |
| Power | 3 × C (1.5V) batteries |
| Warranty | 2 years |
| Weight | 18.4oz (520g) |
Resources & Support
User Manual
Extech EZ40 User Manual
Certification
Extech EZ40 Declaration of Conformity
Datasheet
Extech EZ40 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
