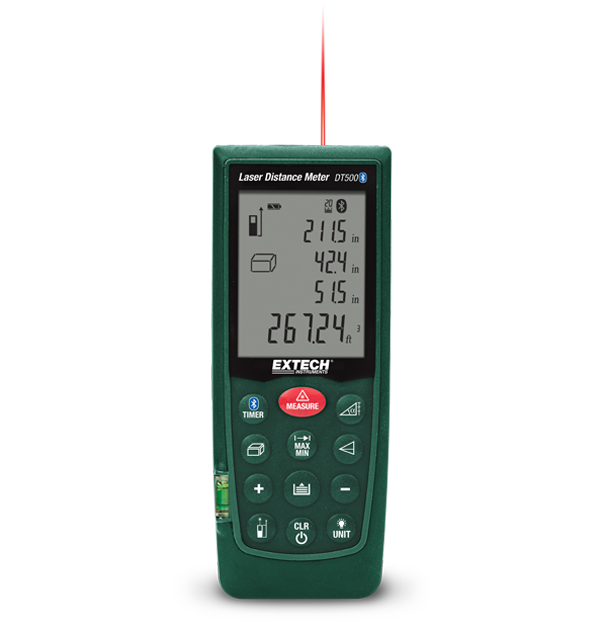

Extech DT500
Laser Distance Meter with Bluetooth®
View distance measurements taken by the Extech DT500 from a remote area on your iOS device. It works with a free Apple app to display large, easy-to-read values up to 10 m (30 ft) away and measures up to 70 m (229 ft) with a target plate. In addition to distance measurements, the meter’s built-in bubble level provides easy visual guidance on determining if a surface is level. Continuous measurement function with min/max distance tracking updates every 5 seconds and it automatically calculates area and volume. Complete with carrying case, tripod mount, and 2 AA batteries
Specifications
| General | |
|---|---|
| Area Calculation | 999.99 ft², 999.99 m² |
| Distance | 2" to 229' (0.05 to 70m) with a target plate, 2" to 164' (0.05 to 50m) without a target plate |
| Distance Basic Accuracy | ±0.06" ( ±1.5mm) |
| Distance Max Resolution | 0.0625" (0.001m) |
| Length Add Calculation | 99'11" (99.99m) |
| Volume Calculation | 999.99 ft³, 999.99 m³ |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.3 × 2.3 × 1.3" (135 × 58 × 33mm) |
| IP Rating | IP54 |
| Power | 2 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 7.2oz (203g) |
Resources & Support
Certification
Extech DT500 Declaration of Conformity
User Manual
Extech DT500 User Manual
Datasheet
Extech DT500 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
