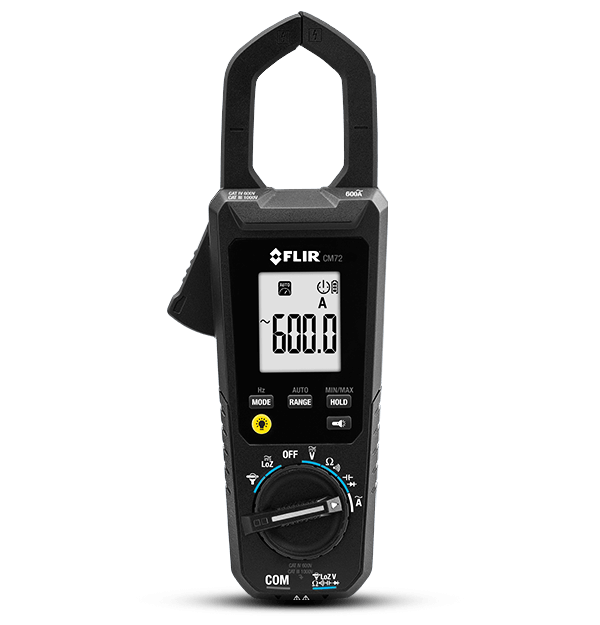

FLIR CM72
True RMS Clamp Meter
The FLIR CM72 clamp meter gives you better access to wiring in hard-to-reach places. Made with a narrow jaw and high-powered LED worklights, the meter makes it easier to take measurements in dark, crowded panels and cabinets. It’s compact and light to carry in your back pocket wherever you go. The CM72 features AC measurement, Autoranging, True RMS, and more, to help you stay competitive and ensure accurate readings.
Specifications
| Highlighted | |
|---|---|
| Jaw Opening | 1.38" (35mm), 1250MCM |
| AC Current | 600.0A / Basic Accuracy ±2.0% |
| Measurement & Analysis | |
|---|---|
| AC Current | 600.0A / Basic Accuracy ±2.0% |
| AC Voltage | 600.0V / Basic Accuracy ±1.0% |
| Capacitance | 1000µF / Basic Accuracy ±1.0% |
| Category Rating | CAT IV-600V, CAT III-1000V |
| Continuity | 600.0Ω / Basic Accuracy ±1.0% |
| DC Current | - / Basic Accuracy ±2.0% |
| DC Voltage | 600.0V / Basic Accuracy ±1.0% |
| Diode | 1.5V / Basic Accuracy ±1.5% |
| Frequency | 60.00kHz / Basic Accuracy ±0.1% |
| Inrush AC Current | - / Basic Accuracy ±3.0% |
| Inrush Current Threshold | - / Basic Accuracy |
| LoZ Mode AC Voltage | 600.0V / Basic Accuracy ±1.0% |
| LoZ Mode DC Voltage | 600.0V / Basic Accuracy ±1.0% |
| Resistance | 6000Ω / Basic Accuracy ±1.0% |
| VFD AC Current | 600.0A / Basic Accuracy ±2.0% |
| VFD AC Voltage | - / Basic Accuracy ±1.0% |
| Power | |
|---|---|
| Battery Type | 4 x AAA |
| General | |
|---|---|
| Includes | Clamp Meter, 4 x AAA Batteries, Premium Silicone Test Leads, Quick Start, User Manual (CD), Extended Warranty Registration Card |
| Jaw Opening | 1.38" (35mm), 1250MCM |
| Environmental & Certifications | |
|---|---|
| Certifications | UL |
| Warranty | Limited Lifetime |
