Discontinued

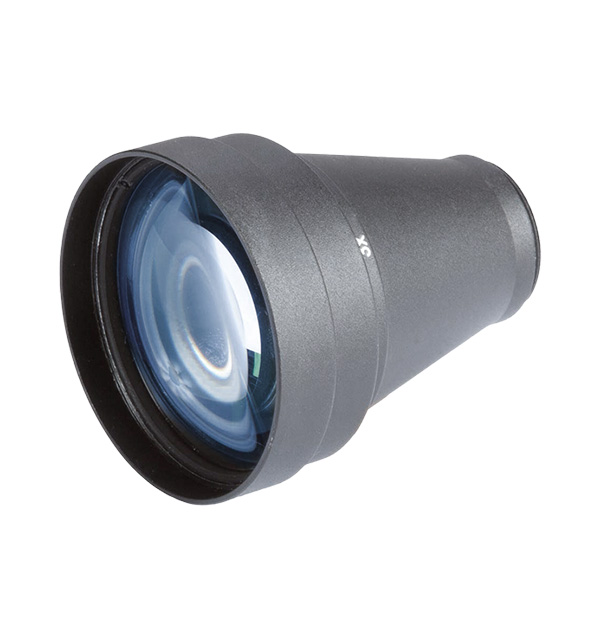

3x Afocal Lens #22 (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro)
Afocal lenses add magnified, long-range performance to standard night vision devices. Quickly installed onto the front of an objective lens, the 3x Afocal Magnifier Lens converts night vision monoculars and goggles into long-range optics.
Specifications
| Sensor & Optical | |
|---|---|
| Field of View [angle] | ≥11°30' |
| Magnification | 3x |
| Resolution | ≤4.1" |
| Environmental & Approvals | |
|---|---|
| Storage Temperature | -57°С to +65°C (-65°F to +149°F) |
| Waterproof | 1m / 30 min |
| File Storage & Communication | |
|---|---|
| Connecting Thread | M28 x 0.75 |
| System Overview | |
|---|---|
| Light Transmission [400 to 900 nm] | ≥ 90% |
| Physical | |
|---|---|
| Dimensions [without caps] | Ø61.2 х 73.5mm |
| Weight | 180 g (0.39 lbs) |
Resources & Support
Datasheet
3x Afocal Lens 22 Datasheet
