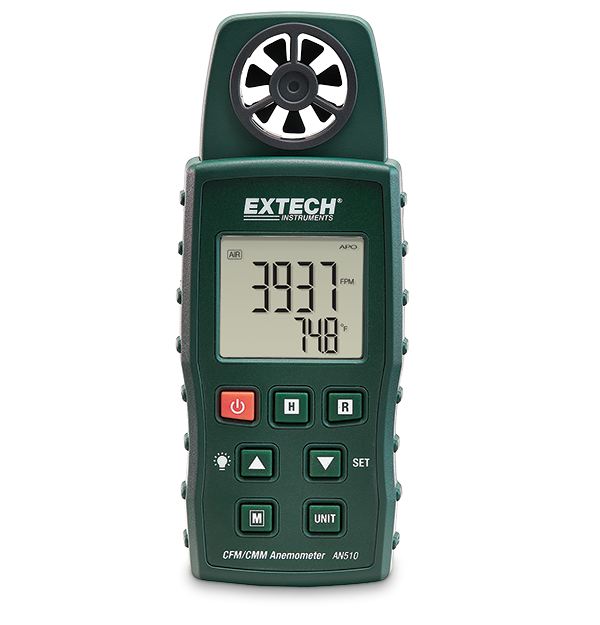

Extech AN510
CMM/CFM Anemometer + Type-K
The Extech AN510 is a convenient 4-in-1 Anemometer that measures air velocity, air flow, air temperature, and Type-K temperature. Includes a built-in low friction ball bearing mini vane wheel for high accuracy. The Type-K temperature probe function measures surface temperature up to 1300°C (2372°F). It features large dual LCD with backlighting, data hold, and min/max function.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 80 to 3937 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% full scale |
| Air Velocity [ft_min] Max Resolution | 1ft/min |
| Air Velocity [km_h] | 1.4 to 72km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% full scale |
| Air Velocity [km_h] Max Resolution | 0.1km/h |
| Air Velocity [knots] | 0.8 to 38.8 knots |
| Air Velocity [knots] Basic Accuracy | ±3% full scale |
| Air Velocity [knots] Max Resolution | 0.1knots |
| Air Velocity [mph] | 0.9 to 44.7MPH |
| Air Velocity [mph] Basic Accuracy | ±3% full scale |
| Air Velocity [mph] Max Resolution | 0.1MPH |
| Air Velocity [m_s] | 0.4 to 20m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% full scale |
| Air Velocity [m_s] Max Resolution | 0.1m/s |
| Air Volume [CFM] | 0.847 to 1,271,300 CFM |
| Air Volume [CFM] Max Resolution | 0.001 CFM |
| Air Volume [CMM] | 0.024 to 36,000 CMM |
| Air Volume [CMM] Max Resolution | 0.001 CMM |
| Temperature [Air] | 32 to 122°F (0 to 50°C) |
| Temperature [Air] Basic Accuracy | 0.1° |
| Temperature [Air] Max Resolution | ±2.5°F (±1.2°C) |
| Temperature [Type K] Max Resolution | -148°F to 2372°F (-100°C to 1300°C) |
| Temperature [Type N] | ±(0.4% + 1.8°F/1°C) |
| Temperature [Type N] Basic Accuracy | 0.1° |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.5 × 1.8 ×1.2" (141 × 45 × 20mm) |
| Power | 3 × AAA (1.5V) batteries |
| Vane | 1" (27mm) |
| Warranty | 2 years |
| Weight | 5.6oz (160g) |
