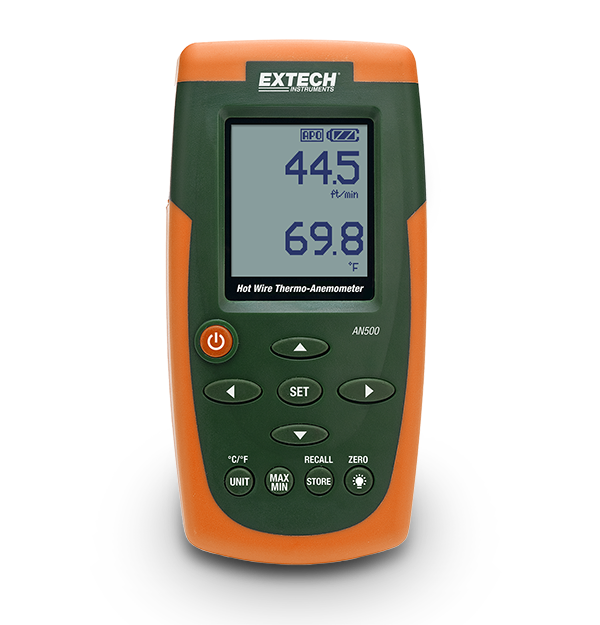

Extech AN500
Hot Wire CFM/CMM Thermo-Anemometer
The Extech AN500 is a Hot Wire CFM/CMM Thermo-Anemometer. New sensor technology delivers major improvements in its durability and ATC (automatic temperature compensation) for accurate, in-duct, air velocity measurements with changing air temperatures. Its telescoping probe with ruler label ensures that measurements are made in the center of the duct, even if it is out of reach. Its ergonomic directional handle and anti-rotation sensor confirms that the probe direction and airflow direction are aligned for confident readings. Complete with telescoping probe with cable, 100 V to 240 V AC universal adaptor with 4 plugs, 6 batteries, and a hard carrying case.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 40 to 3940ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% |
| Air Velocity [ft_min] Max Resolution | 1ft/min |
| Air Velocity [km_h] | 0.7 to 75km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% |
| Air Velocity [km_h] Max Resolution | 0.1km/h |
| Air Velocity [knots] | 0.4 to 40knots |
| Air Velocity [knots] Basic Accuracy | ±3% |
| Air Velocity [knots] Max Resolution | 0.1knots |
| Air Velocity [mph] | 0.5 to 45MPH |
| Air Velocity [mph] Basic Accuracy | ±3% |
| Air Velocity [mph] Max Resolution | 0.1MPH |
| Air Velocity [m_s] | 0 to 20m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% |
| Air Velocity [m_s] Max Resolution | 0.01m/s |
| Air Volume [CFM] | 0 to 999,999 CFM |
| Air Volume [CFM] Max Resolution | 0.01 CFM |
| Air Volume [CMM] | 0 to 999,999 CMM |
| Air Volume [CMM] Max Resolution | 0.01 CMM |
| Temperature [Air] | 32 to 140 °F (0 to 60 °C) |
| Temperature [Air] Basic Accuracy | ±2 °F (±1 °C) |
| Temperature [Air] Max Resolution | 0.1° |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.1 × 2.8 × 1.3" (180 × 72 × 32mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 12.5oz (355g) |
