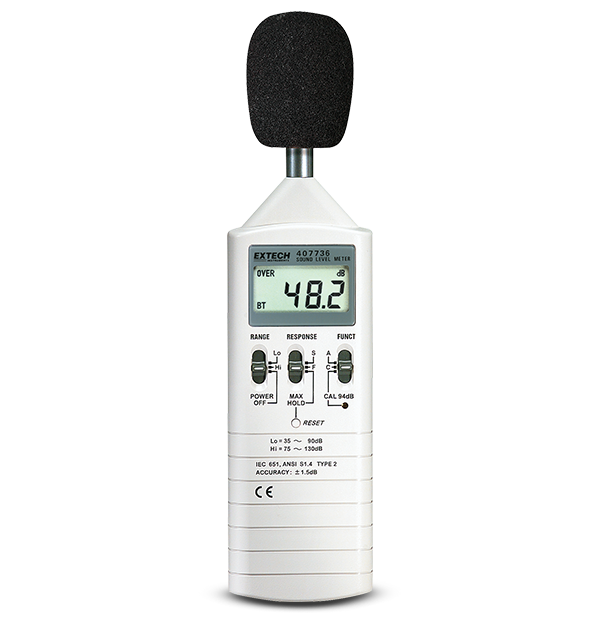

Extech 407736
Dual Range Sound Level Meter
The Extech 407736 Dual Range Sound Level Meter measures from 35 dB to 130 dB ±1.5 dB, and it meets both ANSI and IEC Type 2 standards. It features a fast and slow response time, A/C weighting, max hold function, and an analog AC/DC output for connection to an analyzer or recorder. Comes complete with microphone wind screen, 9 V battery, and carrying case.
Specifications
| General | |
|---|---|
| Analog Output | AC/DC |
| Microphone | Condenser, 0.5” (12.7mm) |
| Response Time | Fast/Slow |
| Sound Range [dB] | Low: 35 to 90dB; High: 75 to 130dB |
| Sound Range [dB] Basic Accuracy | ±1.5dB (Type 2) |
| Sound Range [dB] Max Resolution | 0.1dB |
| Weighting | A,C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 9.5 × 2.7 × 1" (241 × 69 × 25mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 7.6oz (215g) |
Resources & Support
User Manual
Extech 407736 User Manual GB
Certification
Extech 407736 Declaration of Conformity
Datasheet
Extech 407735 407736 Datasheet
