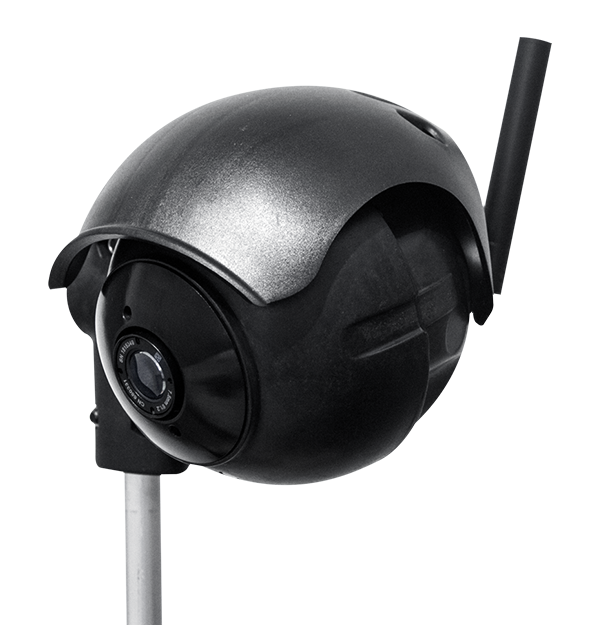

TrafiSense2
The World's Most Advanced Integrated Thermal Traffic Detector
TrafiSense2 is an integrated thermal sensor and detector for vehicle, vulnerable road user, and wrong way driver detection. TrafiSense2 does not need light to operate, and instead uses the thermal energy emitted from road users. This enables the sensor to detect vehicles and vulnerable road users at night, over long distances, and in harsh weather conditions. With available 640x480 resolution, the TrafiSense2 offers 24/7 traffic detection for a wide range of applications.
Specifications
| System Overview | |
|---|---|
| Detection Functionalities | Vehicle and bicycle presence detection, vehicle and bicycle counting, pedestrian presence detection, pedestrian counting, traffic data collection, traffic flow monitoring, wrong way driver detection (requires extra license) |
| Functionality | Vehicle presence, Bicycle presence, Vehicle and bicycle counting, Pedestrian presence, Traffic data, wrong-way driver detection |
| Number Detection Zones | 24 vehicle presence zones \ 8 bicycle presence regions \ 8 pedestrian zones \ 6 traffic data zones \ 6 wrong way driver zones |
| Communications | |
|---|---|
| Compression | H.264, MPEG-4, MJPEG |
| SDLC | Up to 16 output channels via TI BPL2 EDGE B & SUI (PN 10-7018) or via TI BPL2 EDGE (PN 10-7013) and Port-1 Interface Module (PIM) |
| Setup Commands | Web interface |
| Traffic monitoring [event and data reporting] | TMS FLUX. Public API for 3rd party integration. |
| Electrical | |
|---|---|
| Contact Closures | 2 direct, 4 via TI BPL2 EDGE interface (PN 10-7013), extra via 4I/O USB expansion board(s) (PN 10-467 |
| Detection Distance | TrafiSense2 690: 2-30 m / 6-100 ft TrafiSense2 645: 10-75 m / 32-245 ft TrafiSense2 632: 15-90 m / 100-300 ft |
| FCC | FCC part 15 Class A |
| Input Power | 12-42VAC, 12-60VDC |
| PoE | For communication of output state events, configuration & monitoring (streaming video) |
| Power Consumption | <10.5W (<15W peak at startup) |
| Environmental | |
|---|---|
| EU Directives | EMC 2014/30/EU, RoHS 2011/65/EU |
| Materials | All weatherproof (UV-resistant) |
| Protection Grade | Housing = IP68, Connectors = IP67 |
| Shock and Vibration | NEMA TS2 |
| Temperature Range | NEMA TS2. From -34°C to +74°C (-29°F to 165°F) |
| Imaging & Optical | |
|---|---|
| Field of View | TrafiSense2 690: Horizontal: 90° Vertical: 69° TrafiSense2 645: Horizontal: 45° Vertical: 35° TrafiSense2 632: Horizontal: 32° Vertical: 26° |
| Frame Rate | 30 FPS |
| Resolution | VGA (640×480) |
| Type | Long wave Infrared (7 – 14 µm) |
| Mechanical | |
|---|---|
| Dimensions [incl mounting bracket] | Vertically mounted 45 cm x 16 cm x 12 cm (9.8 in x 6.3 in x 4.7 in) / Horizontally mounted 41 cm x 18 cm x 12 cm (16.2 in x 7.1 in x 4.7 in) |
| Material | Aluminum |
| Sunshield | Integrated |
