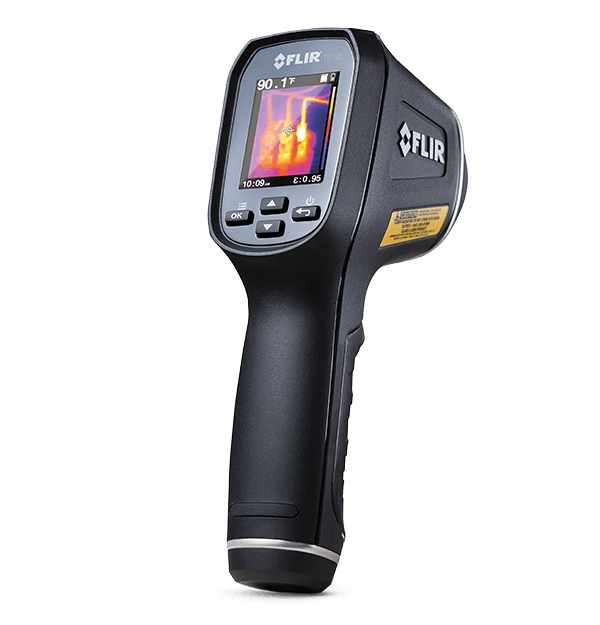

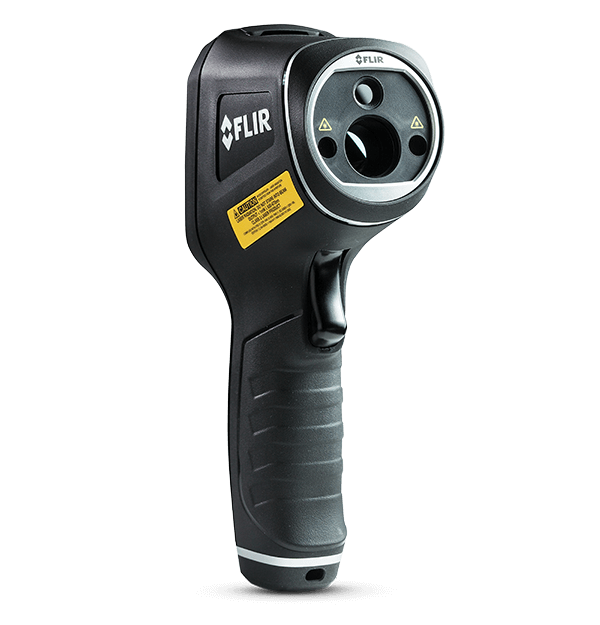

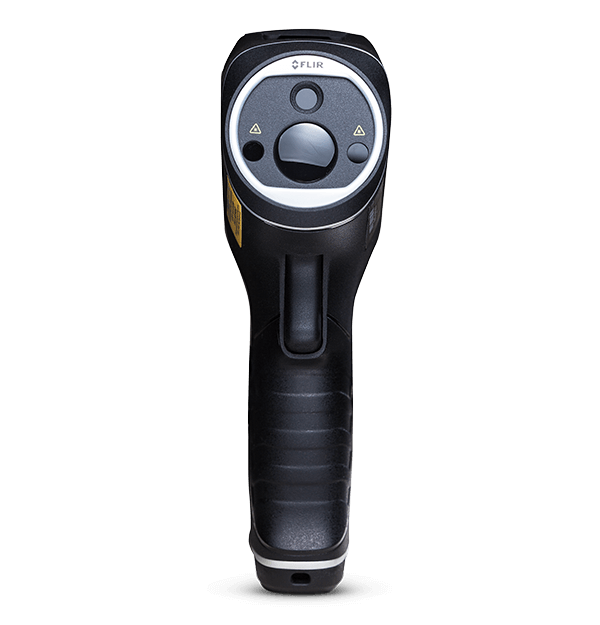

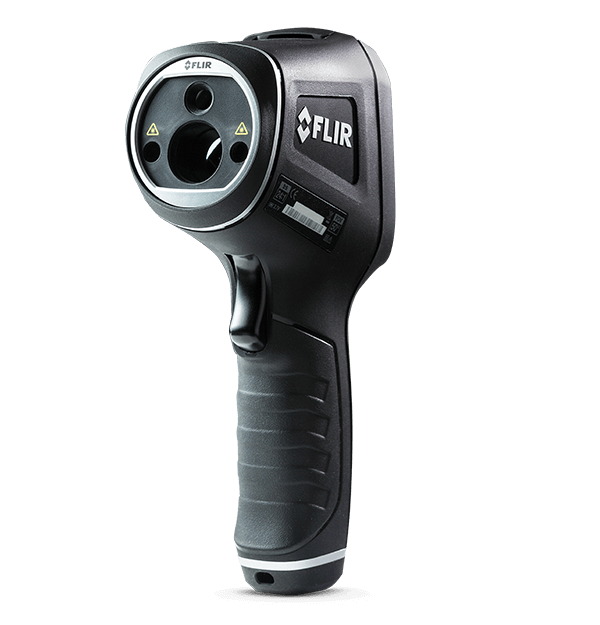

FLIR TG165
Spot Thermal Camera for General Use
The FLIR TG165 Spot Thermal Cameras bridge the gap between single spot infrared thermometers and FLIR's legendary thermal cameras. Equipped with FLIR's exclusive Lepton® micro thermal sensor, these cameras let you see the heat so you know exactly where to target the measurement spot. Easily find unseen hot and cold spots for instant troubleshooting, and store images and data to show customers and include in reports.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 80 × 60 pixels |
| Object Temperature Range | -25°C to 380°C (-13°F to 716°F) |
| Accuracy | ±1.5% or 1.5°C (2.7°F) |
| Field of view [FOV] | 50° x 38,6° |
| Color palettes | Hot Iron and Grayscale |
| Display | 2.0 in. TFT LCD |

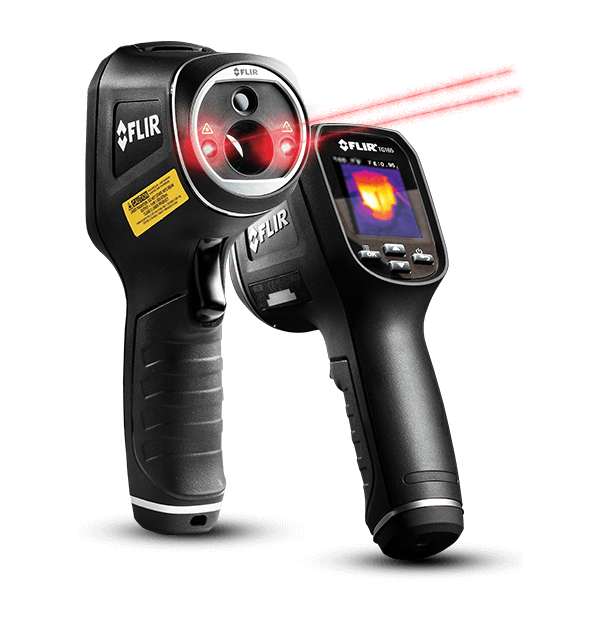

| Laser | Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger |
| Imaging & Optical | |
|---|---|
| Color palettes | Hot Iron and Grayscale |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of view [FOV] | 50° x 38,6° |
| Focus | Focus free |
| Gallery | 17565 |
| Image Frequency | 9 Hz |
| IR Resolution | 80 × 60 pixels |
| Laser | Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger |
| Minimum Focus Distance | 0.1 m (4 in.) |
| Minimum Measurement Distance | 26 cm (10 in.) |
| Spectral Range | 8–14 µm |
| Thermal Sensitivity_NETD | <150 mK |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±1.5% or 1.5°C (2.7°F) |
| Camera size [L x W x H] | 186 mm x 55 mm x 94 mm (7.3 in x 2.2 in x 3.7 in) |
| Camera weight incl battery | 0.312 kg (11 oz) |
| Center spot | Yes |
| Object Temperature Range | -25°C to 380°C (-13°F to 716°F) |
| Communication & Data Storage | |
|---|---|
| Image Storage Capacity | 75 000 pictures with included 8 GB Micro SD card |
| Memory Expansion | 32 GB SD card maximum |
| Memory Type | Micro SD card |
| Saved image format | Bitmap (BMP) image with temperature and emissivity |
| User Interface | |
|---|---|
| Display | 2.0 in. TFT LCD |
| Power | |
|---|---|
| Battery charge life | 30 days minimum |
| Battery operating time | >5 hours of continuous scanning with lasers |
| Battery Type | Rechargeable Li ion battery |
| Battery voltage | 3.7 V |
| Charging system | Battery is charged inside the camera |
| Charging Time | 4 hours to 90%, 6 hours to 100% |
| Power Management | Adjustable; OFF, 1 min., 2 min., 5 min., 10 min. |
| General | |
|---|---|
| Includes | Wrist strap lanyard, 8 GB Micro SD card, power supply with separate USB cable, printed documentation |
| Environmental & Certifications | |
|---|---|
| Drop test | Designed for 2 m (6.6 ft) |
| Humidity [operating and storage] | 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F)) |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Storage Temperature Range | -30°C to 55°C (-22°F to 131°F) |
| Tripod Mounting | 1/4 in.-20 on handle bottom |
