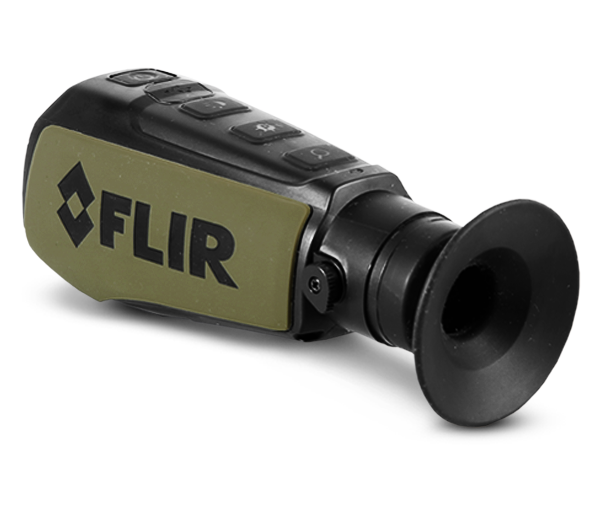

Offering clear thermal imaging in a compact monocular, Scout II quickly detects humans, animals, and objects in low visibility environments—day or night. Generating images based on heat, rather than visible light, thermal imaging gives users increased situational awareness in complete darkness and haze, providing reliable vision for surveillance and safe navigation. A rugged IP-67 housing allows on-demand thermal imaging in the most trying conditions.
Specifications
| Highlighted | |
|---|---|
| Thermal Sensitivity | <50 mK @ f/1.0 |
| Sensor & Optical | |
|---|---|
| Detector Type | 640 × 512 VOx Microbolometer |
| Field of view [FOV] | 18° × 14° NTSC |
| Focal Length | 33mm Fixed Focus |
| Image Processing | FLIR Proprietary Digital Detail Enhancement™ |
| Thermal Sensitivity | <50 mK @ f/1.0 |
| Environmental & Approvals | |
|---|---|
| Drop Test Rating | 1 m |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Rating | IP-67, Submersible |
| Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
| Power | |
|---|---|
| Battery Life [Operating] | > 5 Hours |
| Battery Type | Internal Li-Ion Cell |
| Start Up Time | < 1.5 seconds |
| File Storage & Communication | |
|---|---|
| Video Output | NTSC composite video (Switchable to PAL w/GUI) - 320 Model only |
| UI-UX | |
|---|---|
| Black Hot_White Hot | BH/WH/InstAlert™ |
| Brightness | Adjusts Display Brightness Setting |
| Built_in Display | 640 × 480 LCD Display |
| Image Polarity | White Hot/Black Hot/InstAlert™; Selectable |
| On_Screen Symbology | Standard |
| Polarity | White Hot/Black Hot/InstAlert™; Selectable |
| Power Button | On / Off |
| Splash Screen | Generic |
| Task Light | LED Enabled during Power off state |
| Video Refresh Rate | <9Hz NTSC |
| Zoom Button | 2×, 4× Zoom |
| System Overview | |
|---|---|
| Package Includes | Handheld Thermal Camera, USB Power Adapter/Charger, Wrist strap, Custom Video out cable (320 & 640 versions), USB Cable, Quick Start Guide, Molle bag |
| Size [L x W x H] | 6.70" × 2.31" × 2.44" |
| Warranty | 2 years standard, 3 years with product registration |
| Waveband | 7.5 - 13.5 µm |
| Weight [incl lens] | 12 oz (340 g) |
