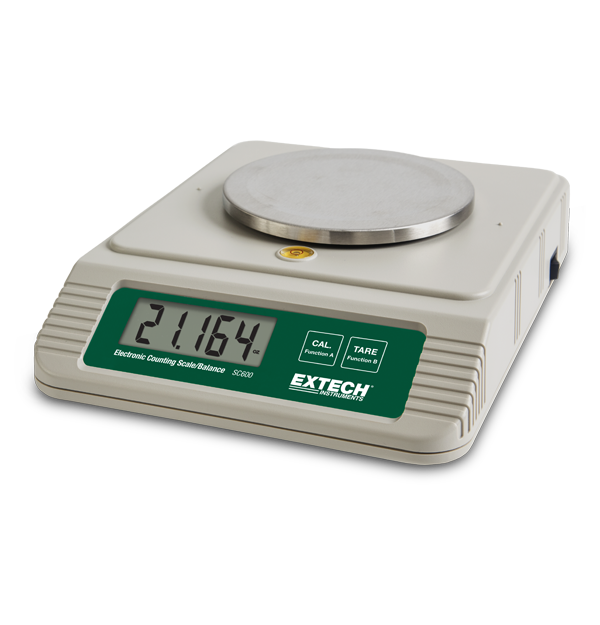

Extech SC600
Electronic Counting Scale/Balance
The Extech SC600 is an Electronic Counting Scale/Balance intended for professional electronic counting and weighing with a load cell transducer for high accuracy and performance. The wide capacity measures single small electronic components weighing up to 0.1g (0.005 oz), or in batches up to 600 g (21.164 oz). Complete with 6 AA batteries, metal platform, and Universal AC adaptor with multiplugs.
Specifications
| General | |
|---|---|
| PC Interface | RS232 port |
| Sampling Rate | Approx. 1 measurement per second |
| Tare Control | 600g maximum (approx.) |
| Transducer Type | Load cell |
| Weight Range | 0.10 to 600g |
| Weight Range Basic Accuracy | ±(0.05% + 0.04g) |
| Weight Range Max Resolution | 0.01g |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 9.8 × 7.5 × 2.8" (250 × 190 × 70mm), Platform diameter: 4.7" (120mm) |
| Display | 5-digit segment LCD |
| Power | 6 × AA (1.5V) batteries, AC/DC power adaptor (9V/300mA) with multi-plugs |
| Warranty | 2 years |
| Weight | 2.2 lbs (1 kg) |
Resources & Support
Datasheet
Extech SC600 Datasheet
Certification
Extech SC600 Declaration of Conformity
User Manual
Extech SC600 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
