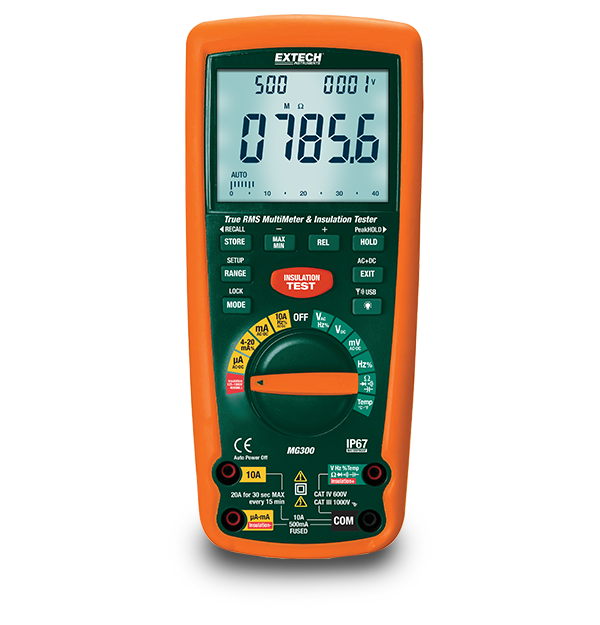

Extech MG300
13 Function Wireless True RMS MultiMeter/Insulation Tester
The Extech MG300 is a True RMS Multimeter with a built in insulation resistance tester that features wireless data streaming for remote monitoring and datalogging. By adding insulation testing capabilities to the ubiquitous digital multimeter, electricians are always equipped for insulation testing. This feature helps make the MG300 a more routine part of predictive maintenance with faster troubleshooting and repairs without additional tools. The rugged and waterproof (IP67-rated) combination meter includes a digital insulation resistance tester (or megohmmeter) with 4 different test voltages for measuring resistance up to 4G Ω with 0.001 MΩ resolution. Complete with remote receiver with USB cable, windows compatible software, heavy duty test leads, alligator clip test lead, Type K bead wire temperature probe with adapter, carrying case, and 6 AA batteries.
Specifications
| General | |
|---|---|
| AC Current | 10A |
| AC Current Basic Accuracy | ±1.5% |
| AC Current Max Resolution | 0.1µA |
| AC Voltage | 1000V |
| AC Voltage Basic Accuracy | ±1% |
| AC Voltage Max Resolution | 0.1mV |
| Capacitance | 40mF |
| Capacitance Max Resolution | 0.001nF |
| Continuity | Yes |
| Current Loop [4_20mA] % | -25 to 125% |
| Current Loop [4_20mA] % Max Resolution | 0.01% |
| DC Current | 10A |
| DC Current Basic Accuracy | ±1.0% |
| DC Current Max Resolution | 0.01µA |
| DC Voltage | 1000V |
| DC Voltage Basic Accuracy | ±0.06% |
| DC Voltage Max Resolution | 0.01mV |
| Diode Test | Yes |
| Duty Cycle | 0.1 to 99.9% |
| Duty Cycle Basic Accuracy | ±1.2% |
| Duty Cycle Max Resolution | 0.01 |
| Frequency | 100MHZ |
| Frequency Basic Accuracy | ±0.1% |
| Frequency Max Resolution | 0.001HZ |
| Insulation Resistance | 4MΩ, 40MΩ, 400MΩ, 4000MΩ |
| Insulation Resistance Basic Accuracy | ±3% |
| Insulation Resistance Max Resolution | 0.001MΩ |
| Insulation Test Voltage | 125V, 250V, 500V, 1000V |
| Resistance | 40MΩ |
| Resistance Max Resolution | 0.01Ω |
| Temperature [Type K] Max Resolution | -58 to 2192°F (-50 to 1200°C) |
| Temperature [Type N] | ±1% + 4.5°F (2.5°C) |
| Temperature [Type N] Basic Accuracy | 0.1°F (0.1°C) |
| True RMS | Yes |
| Wireless Transmission Frequency | 915MHz |
| Additional Details | |
|---|---|
| Certifications | CE, FC, UL |
| Dimensions | 7.8 × 3.6 × 1.9" (200 × 92 × 50mm) |
| IP Rating | IP67 |
| Power | 6 × AA (1.5V) batteries |
| Safety Category | CATIV - 600V |
| Warranty | 2 years |
| Weight | 20.5oz (582g) |
