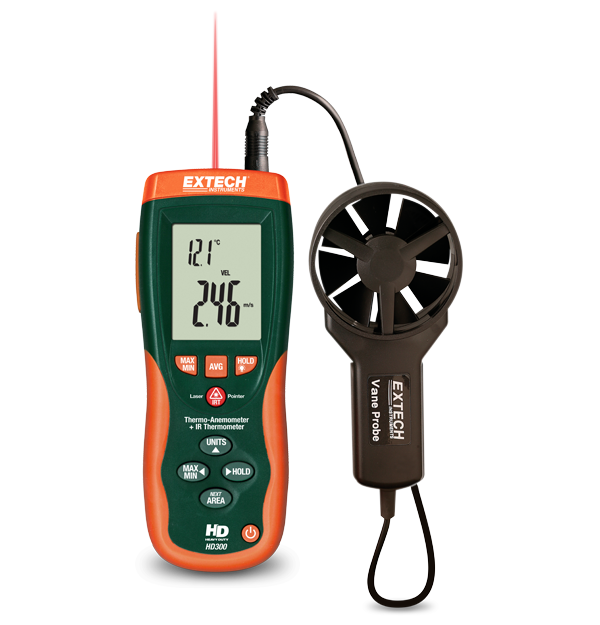

Extech HD300
CFM/CMM Thermo-Anemometer with built-in InfraRed Thermometer
The Extech HD300 is a Thermo-Anemometer with an Infrared Thermometer that measures remote surface temperatures to 500°C (932°F) with a 30:1 distance to target ratio and laser pointer. It can simultaneously display air flow in CFM/CMM or air velocity, plus ambient temperature. This meter has easy to set area dimensions that are stored in the meter's internal memory for the next power on. Additional features include a 9999 count LCD backlit display, 20 point average for airflow, and a heavy duty rugged double molded housing. Comes complete with a vane sensor with 120 cm (3.9 ft) cable, software with cable, carrying case, and 9 V battery.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 80 to 5900 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% |
| Air Velocity [km_h] | 1.4 to 108.0 km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% |
| Air Velocity [knots] | 0.8 to 58.0 knots |
| Air Velocity [knots] Basic Accuracy | ±3% |
| Air Velocity [mph] | 0.9 to 67.0 MPH |
| Air Velocity [mph] Basic Accuracy | ±3% |
| Air Velocity [m_s] | 0.4 to 30.00 m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% |
| Air Volume [CFM] | 0 to 999900 CFM |
| Air Volume [CFM] Max Resolution | 0.1CFM |
| Air Volume [CMM] | 0 to 999900 CMM |
| Air Volume [CMM] Max Resolution | 0.1CMM |
| Temperature [Air] | 14 to 140°F (-10 to 60°C) |
| Temperature [Air] Basic Accuracy | ±4°F (2°C) |
| Temperature [IR] Basic Accuracy | -58 to 932°F (-50 to 500°C) |
| Temperature [IR] Max Resolution | ±2% |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8 × 3 × 1.9" (203 × 75 × 50mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 9.8oz (280g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD300 Software
User Manual
Extech HD300 User Manual
Certification
Extech HD300 Declaration of Conformity
Datasheet
Extech HD300 Datasheet
