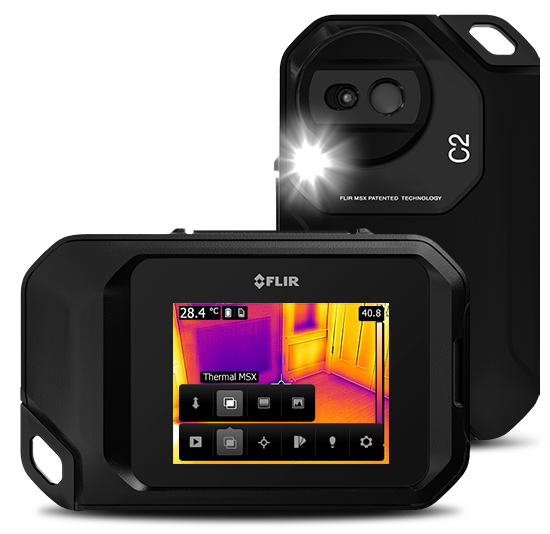

FLIR C2
Compact Thermal Camera
The FLIR C2 is a full-featured, pocket-sized thermal camera designed for a wide range of building and electrical/mechanical applications. Keep it on you so you’re ready anytime to find hidden hot spots, energy waste, structural defects, plumbing clogs, HVAC issues, and other problems. FLIR C2 makes it more affordable than ever to add the powerful advantage of thermal imaging. Note: this product has been updated. Recommend replacement is the FLIR C3-X.
Specifications
| Highlighted | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal |
| Field of view [FOV] | 41° × 31° |
| Digital Camera | 640 × 480 pixels |
| Storage Media | Internal memory stores at least 500 sets of images |
| Imaging & Optical | |
|---|---|
| Auto orientation | Yes |
| Color palettes | Iron, Rainbow, Rainbow HC, Gray |
| Digital Camera | 640 × 480 pixels |
| Field of View | |
| Field of view [FOV] | 41° × 31° |
| Focal Length | 1.54 mm (0.061 in.) |
| Focus | Focus free |
| Gallery | Yes |
| Image Frequency | 9 Hz |
| Minimum Focus Distance | Thermal: 0.15 m (0.49 ft.) MSX: 1.0 m (3.3 ft.) |
| MSX | Yes |
| NETD | 100 mK |
| Non_radiometric IR video streaming | Yes |
| Screen EST Mode | No |
| Spectral Range | 7.5–14 µm |
| Visual Image | Yes |
| Visual Video Streaming | Yes |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal |
| Emissivity Correction | Yes; matte/semi/glossy + user set |
| Measurements correction | Reflected apparent temperature Emissivity |
| Object Temperature Range | –10°C to +150°C (14 to 302°F) |
| Spot Meter | On/off |
| Thermal Sensitivity | <0.10°C |
| User Interface | |
|---|---|
| Touch Screen | Yes, capacitive |
| Communication & Data Storage | |
|---|---|
| Image File Format | Standard JPEG, 14-bit measurement data included |
| Storage Media | Internal memory stores at least 500 sets of images |
| USB_Connector Type | USB Micro-B: Data transfer to and from PC |
| USB_Standard | USB 2.0 |
| Power | |
|---|---|
| Battery | 3.7 V Rechargeable Li-ion polymer battery |
| Battery operating time | 2 h |
| Charging system | Charged inside the camera |
| Charging Time | 1.5 h |
| External Power Operation | AC adapter, 90–260 VAC input 5 V output to camera |
| Power Management | Automatic shut-down |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | –10°C to +50°C (14 to 122°F) |
| Storage Temperature Range | –40°C to +70°C (–40 to 158°F) |
| General | |
|---|---|
| Box Contents | Infrared camera Battery (inside camera) Lanyard, Power supply/charger with EU, UK, US, CN and Australian plugs Printed Getting Started Guide, USB memory stick with documentation, USB cable |
| Packaging Size | 175 x 115 x 75 mm (6.9 x 4.5 x 3.0 in.) |
| Size [L x W x H] | 125 × 80 × 24 mm (4.9 × 3.1 × 0.94 in.) |
| Weight [battery included] | 0.13 kg (0.29 lb.) |
