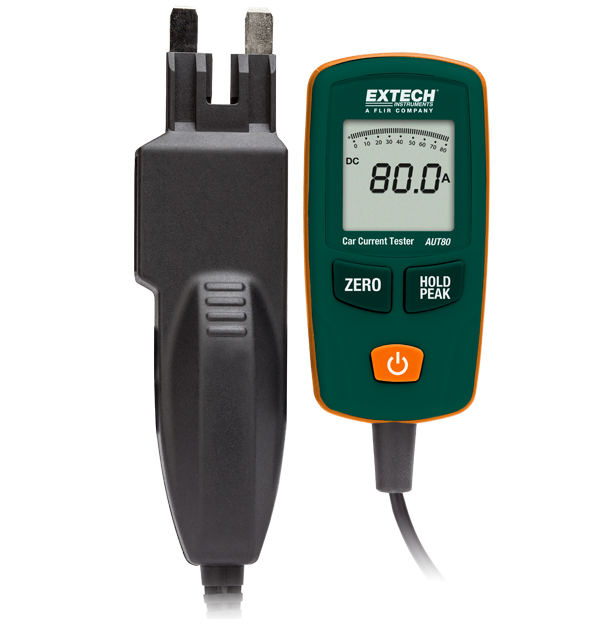

The Extech AUT80 checks up to 80 A without breaking the circuit. Mini, ATC, and Maxi blade connectors plug into the fuse block. It features a measuring range of 80 A/48 VDC (10 seconds, max) with 0.1 A resolution and (± 2% + 4 digits) accuracy. Results are displayed on a 3.5-digit LCD with bargraph. Includes one 9 V battery.
Specifications
| General | |
|---|---|
| DC Current | 0 to 80ADC |
| DC Current Basic Accuracy | ±(2% of reading + 4 digits) |
| DC Current Max Resolution | 100mA (0.1A) |
| DC Voltage | 48VDC |
| Detection Distance | <0.2" |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 112 × 45 × 33mm (4.4" × 1.8" × 1.3") |
| Power | 1 × 9V battery |
| Warranty | 1 year |
| Weight | 165g (0.4 lbs.) |
Resources & Support
User Manual
Extech AUT80 User Manual GB
Certification
Extech AUT80 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
