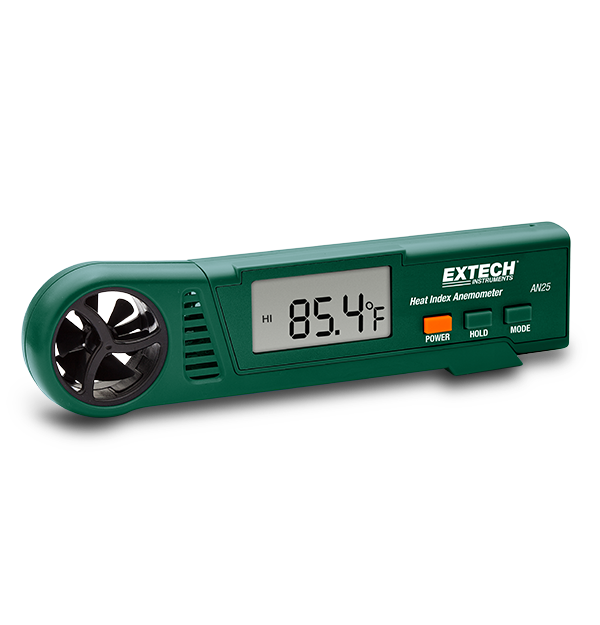

Extech AN25
Heat Index Anemometer
Extech’s AN25 pocket sized Heat Index Anemometer Pen not only measures air velocity, but also monitors heat index during hot humid days to prevent heat stroke during outdoor activities, sporting events, or indoor workplace. Its pen-sized design makes it convenient to fit into your pocket and carry it wherever you go. Complete with CR2032 battery.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 80 to 4920ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% full scale |
| Air Velocity [ft_min] Max Resolution | 0.1ft/min, 1ft/min (>1000ft/min) |
| Air Velocity [km_h] | 1.4 to 90.0km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% full scale |
| Air Velocity [km_h] Max Resolution | 0.1km/h |
| Air Velocity [knots] | 0.8 to 48.6 knots |
| Air Velocity [knots] Basic Accuracy | ±3% full scale |
| Air Velocity [knots] Max Resolution | 0.1 knots |
| Air Velocity [mph] | 0.9 to 55.9mph |
| Air Velocity [mph] Basic Accuracy | ±3% full scale |
| Air Velocity [mph] Max Resolution | 0.1mph |
| Air Velocity [m_s] | 0.4 to 25m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% full scale |
| Air Velocity [m_s] Max Resolution | 0.1m/s |
| Dew Point | -103 to 122°F (-75 to 50°C) |
| Dew Point Max Resolution | 0.1°F/°C |
| Heat Index | -31 to 401°F (-35 to 205°C) |
| Heat Index Max Resolution | 0.1°F/°C |
| Relative Humidity | 5.0 to 95.0% |
| Relative Humidity Basic Accuracy | ±3% |
| Relative Humidity Max Resolution | 0.10% |
| Temperature [Air] | 5 to 122°F (-15 to 50°C) |
| Temperature [Air] Basic Accuracy | ±2°F/1°C |
| Temperature [Air] Max Resolution | 0.1°F/C |
| Wet Bulb | 5 to 122°F (-15 to 50°C) |
| Wet Bulb Globe Temperature [WBGT] | -20.2 to 130°F (-29 to 54.5°C) |
| Wet Bulb Globe Temperature [WBGT] Max Resolution | 0.1°F/°C |
| Wet Bulb Max Resolution | 0.1°F/°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6 × 1.6 × 0.7" (152 × 40 × 18mm) |
| Power | 1 × CR2032 (1.5V) |
| Warranty | 2 years |
| Weight | 2.1oz (60g) |
Resources & Support
User Manual
Extech AN25 User Manual GB
Certification
Extech AN25 Declaration of Conformity
Datasheet
Extech AN25 Datasheet
