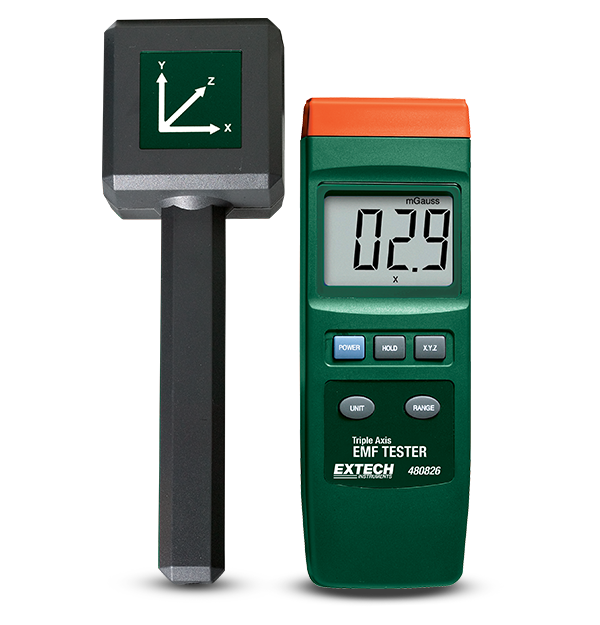

480826 Triple Axis EMF Tester is designed to provide a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, electrical appliances and industrial devices. Provides Three axis (X, Y, Z direction) electromagnetic field measurement. Calibrated to measure EMF radiation at wide bandwidths from 30 Hz to 300 Hz. Complete with sensor with 3 ft. (930 mm) cable, 9V battery, and hard carrying case.
Specifications
| General | |
|---|---|
| Electromagnetic Field [Gauss] | 200mGauss, 2,000mGauss, 20,000mGauss |
| Electromagnetic Field [Gauss] Basic Accuracy | ±(4% of reading + 3 digits), ±(5% of reading + 3 digits), ±(10% of reading + 5 digits) |
| Electromagnetic Field [Gauss] Max Resolution | 0.1mGauss, 1mGauss, 10mGauss |
| Electromagnetic Field [Tesla] | 20µTesla, 200µTesla, 2000µTesla |
| Electromagnetic Field [Tesla] Basic Accuracy | ±(4% of reading + 3 digits), ±(5% of reading + 3 digits), ±(10% of reading + 5 digits) |
| Electromagnetic Field [Tesla] Max Resolution | 0.01µTesla, 0.1µTesla, 1µTesla |
| Frequency Bandwidth | 30Hz to 300Hz |
| Number of Axes | Three axes X, Y, Z direction |
| Update Rate | Approx. 0.4 second |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.6 × 2.6 × 1.2" (195 × 68 × 30mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
