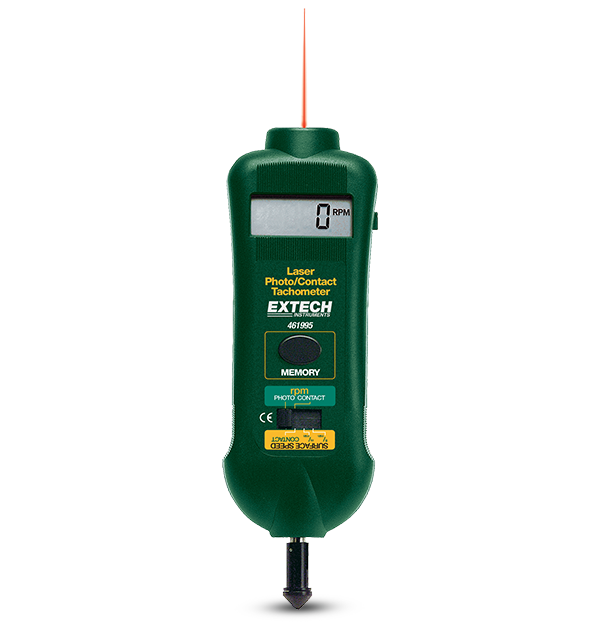

Extech 461995
Combination Contact/Laser Photo Tachometer
The Extech 461995 Combination Contact/Laser Photo Tachometer provides both contact (0. 5 RPM to 19,999 RPM) and non-contact (10 RPM to 99,999 RPM) RPM measurement functions for use in virtually all applications. Laser guided non-contact measure up to 2 m (6.5 ft) away for added safety and convenience. Comes with wheels for linear surface speed or RPM measurements, 4 AA batteries, 0.6 m (23 in) reflective tape, carrying case, and user manual.
Specifications
| General | |
|---|---|
| Rotation Speed [Contact] | 0.5 to 19,999rpm |
| Rotation Speed [Contact] Basic Accuracy | ±0.05% of reading |
| Rotation Speed [Contact] Max Resolution | 0.1rpm |
| Rotation Speed [Strobe] | 10 to 99,999rpm |
| Rotation Speed [Strobe] Basic Accuracy | ±0.05% of reading |
| Rotation Speed [Strobe] Max Resolution | 0.1rpm |
| Surface Speed [Contact] | 0.2 to 6560ft/min, 0.05 to 1999.9m/min |
| Surface Speed [Contact] Basic Accuracy | ±0.05% of reading |
| Additional Details | |
|---|---|
| Certifications | 461995-NIST_S: CE, NIST 461995_S: CE |
| Dimensions | 8.5 × 2.6 × 1.5" (216 × 66 × 38mm) |
| Power | 4 × AA (1.5V ) batteries |
| Warranty | 2 years |
| Weight | 10.6oz (300g) |
