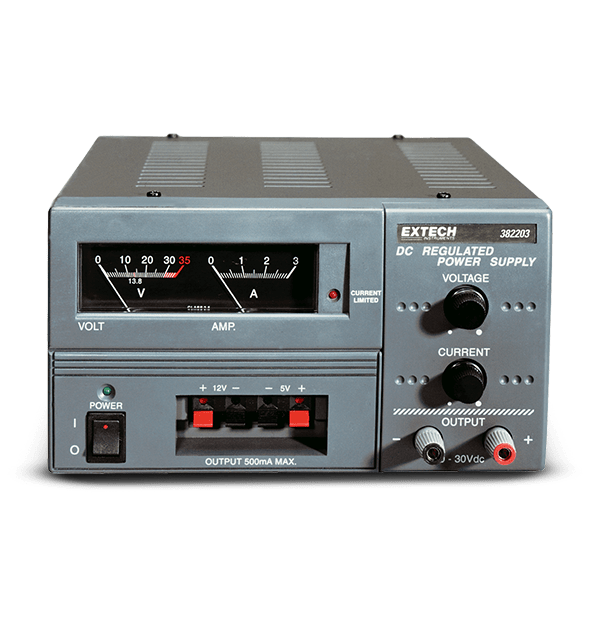

Extech 382203
Analog Triple Output DC Power Supply
The Extech 382203 is an Analog Triple Output DC Power Supply with overload and short circuit protection. Featuring constant voltage and current supply, the 382203 has a current limiting, front panel, LED indicator and binding post terminals for variable supply. Complete with power cord.
Specifications
| General | |
|---|---|
| Fixed Outputs | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| Line Voltage Regulation | <0.05%+10mV |
| Load Voltage Regulation | <0.05%+10mV |
| Output Current | 0 to 3A DC |
| Output Voltage | 0 to 30V DC |
| Ripple and Noise | <5mV |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6 × 5.6 × 9.5" (152 ×142 × 242) |
| Power | 110/220VAC 50/60Hz |
| Warranty | 2 years |
| Weight | 11lbs. (5kg) |
Resources & Support
User Manual
Extech 382203 382213 User Manual
Datasheet
Extech 382203-382213 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
