VS80-LCT-1

512 Hz Pipe Locator for VS80

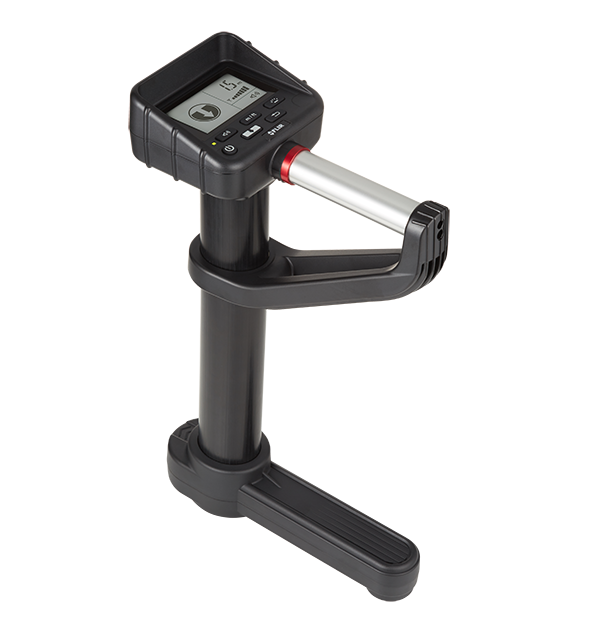

Product view 1

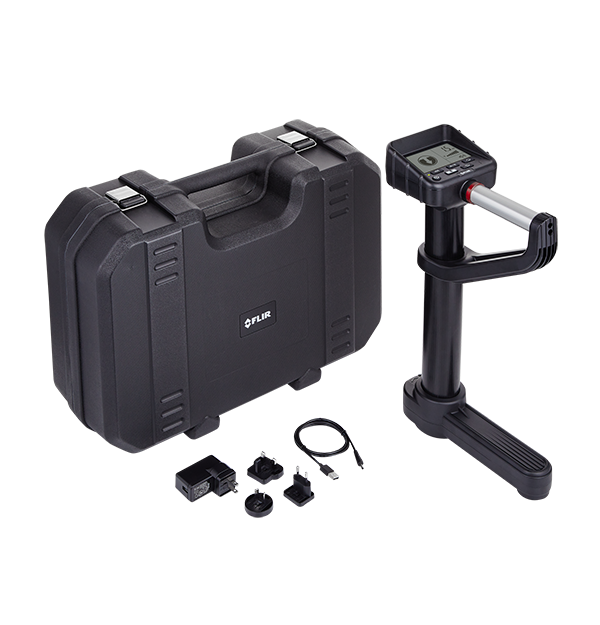

Product view 2

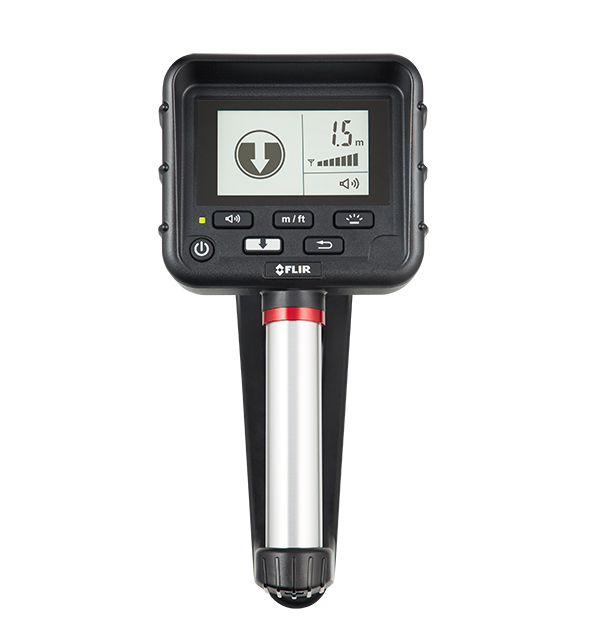

Product view 3

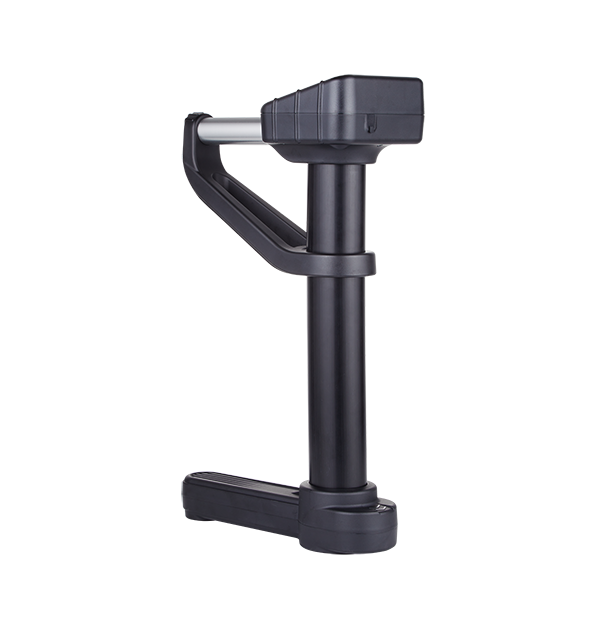

Product view 4

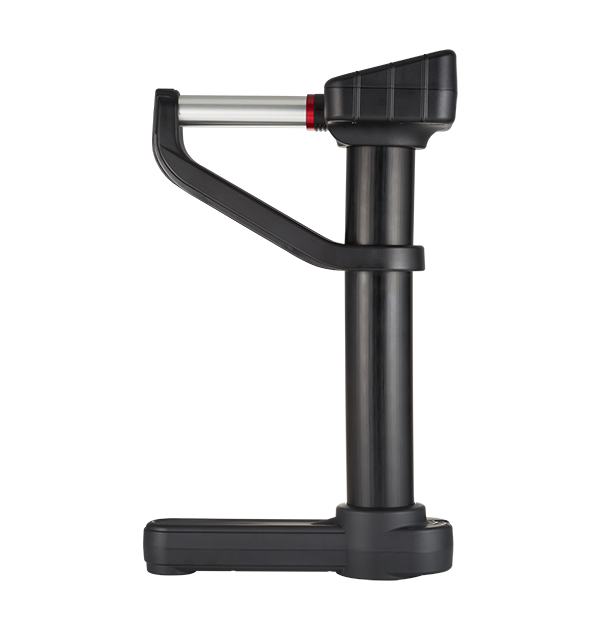

Product view 5

The VS80-LCT-1 is a 512 Hz pipe locator receiver designed to work seamlessly with the VS80 plumbing spool, making it easy to pinpoint underground pipes and sondes. With dual 3D antennas, the locator eliminates false peaks while delivering high sensitivity and accuracy, ensuring reliable results in complex environments.

A bright LCD display, fully visible even in direct sunlight, provides clear visuals and streamlined navigation, while intuitive arrow indicators guide you directly to the transmitter’s position. Built for the toughest jobs, the VS80-LCT-1 is rugged, IP65-rated, and ready to withstand demanding inspection conditions.

Dual 3D antennas eliminate false peaks and deliver precise pipe location every time.
Sunlight-readable display with arrow indicators makes navigation simple and fast.
Rugged, IP65-rated design withstands harsh inspection environments.

Accessories

  1. VS80C30HD-30RM

Resources & Support

User Manual

FLIR VS80–LCT-1 Pipe Locator Receiver User Manual

Download

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
