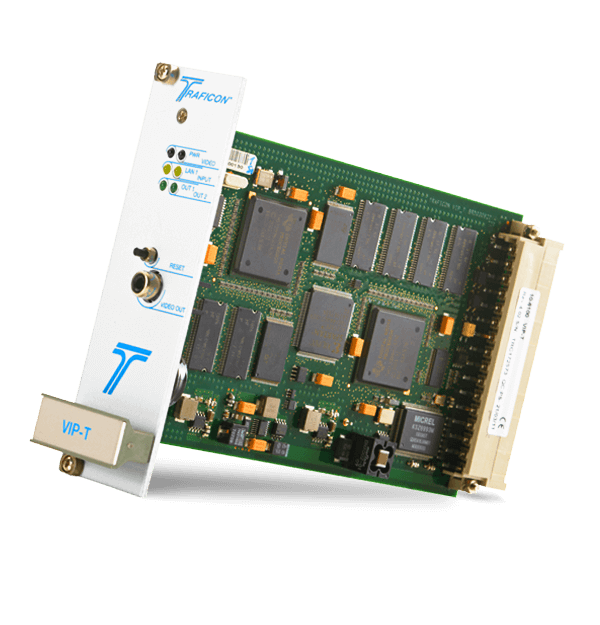

FLIR VIP-T
AID and data collection board for analog cameras
The FLIR VIP-T is a multi-functional Video Image Processing module for traffic control. VIP-T boards process video input from analog cameras for automatic incident detection, data collection, recording of pre and post incident image sequences and streaming video (MPEG-4). VIP-T boards have been installed for road and tunnel projects all over the world.
Specifications
| System Overview | |
|---|---|
| AID | AID overlay Vehicle presence detection |
| Boards per Rack | 4 (1/2 19" rack) or 8 (19" rack) |
| Description | AID module for analog cameras |
| Communications | |
|---|---|
| Audio | No |
| Communication Standards | N/A |
| Data | No |
| Digital Inputs | 1 |
| Digital Outputs | 2 (+ optional 8) |
| Encoding Format | MPEG-4 |
| LAN Connector Type | 10/100 Mbps RJ45 |
| Maximum Streams | Max 4 unicast or multicast |
| Multi_Streaming | Single MPEG-4 |
| PTZ control | No |
| Video Input | Analog PAL / NTSC |
| Electrical | |
|---|---|
| Maximum resolution | 4CIF @ 30 fps |
| MTBF | 200,000 hrs |
| Power | 4W |
| Stand_Alone Form | Box, 24V DC (+/- 15%) |
| Environmental | |
|---|---|
| Operating Temperature | -34° to +74C (-29° to 165°F) |
| Mechanical | |
|---|---|
| Boards per Rack | 4 (1/2 19" rack) or 8 (19" rack) |
| Dimensions | 130 x 41 x 190 mm |
| Weight | 180 g |
