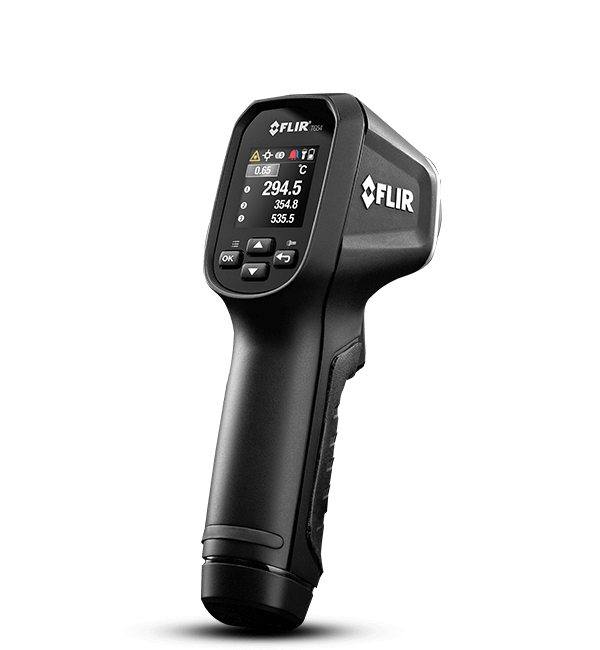

FLIR TG54
24:1 Spot IR Thermometer
The FLIR TG54 provides non-contact surface temperature readings so you can quickly and easily take measurements in places that are out of reach. Providing a distance-to-spot ratio of 24:1, the TG54 can measure smaller targets from a safer distance. The thermometer gives you control to view your current reading and last two temperature readings simultaneously, and the color screen makes it easy to navigate and select settings.
Specifications
| Highlighted | |
|---|---|
| Distance to Spot Ratio [D:S] | 24:1 |
| Basic Accuracy | ±1°C/1.8°F or 1% of Reading |
| Emissivity | Adjustable with 4 presets and custom option |
| Imaging & Optical | |
|---|---|
| Display [w x h] | 1.45" TFT LCD (128 x 128 pixels) |
| Laser Orientation | Single laser pointer to center of measurement spot, Class 1 |
| Range | -30°C to 650°C (-22°F to 1202°F) |
| Resolution | 0.1°C / 0.1°F |
| Spectral Response | 5 to 14 microns |
| Measurement & Analysis | |
|---|---|
| AVG [6k pts running average] | Yes |
| Basic Accuracy | ±1°C/1.8°F or 1% of Reading |
| Differential [MAX_MIN] | Yes |
| Distance to Spot Ratio [D:S] | 24:1 |
| Included Type K Thermocouple Probe Range | - |
| Input Basic Accuracy | - |
| Input Range | - |
| Input Type | - |
| Max_Min | Yes |
| Measurement Resolution | - |
| Response | ≤150 Milliseconds |
| TC_IR Differential Mode | - |
| Power | |
|---|---|
| Auto Power Off | Yes with Pre-set adjustment level and Disable option |
| Continuous Run Time | 8hrs Maximum |
| Power Source | 3 x AAA alkaline |
| General | |
|---|---|
| Alarm | High / Low |
| Alarm Alert | Color (Red / Blue) indication |
| Includes | Wrist Strap Lanyard, Quick Start Guide, User Manual (CD), 3 x AAA Batteries, (TG56 adds General Purpose Type K Thermocouple) |
| Environmental & Certifications | |
|---|---|
| Certifications | CE / FDA Laser |
| Drop test | Designed for 3m |
| Emissivity | Adjustable with 4 presets and custom option |
| IP Rating | Designed for IP56 |
| Warranty | Limited 3-Year |
