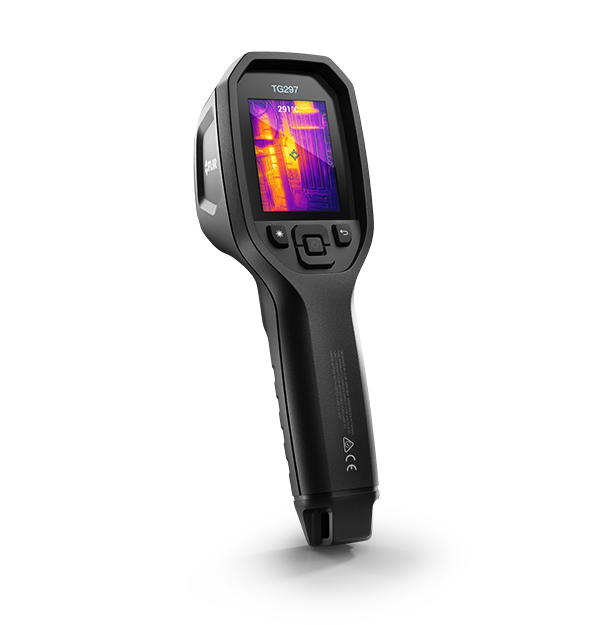

FLIR TG297
Industrial High Temp Thermal Camera
The FLIR TG297 is a one-of-a-kind industrial diagnostic tool that combines accurate temperature measurement with the ability to image up to 1030°C (1886°F). Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images. The TG297 is ideal for high-temperature industrial uses such as measuring the heat of glass furnaces, kilns, and forges as well as manufacturing applications, allowing you to accurately target potential faults, troubleshoot repairs, and monitor processes. Record images to assure your team that machinery and systems are functioning safely and at peak efficiency.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 160 × 120 pixels |
| Thermal Sensitivity_NETD | <70 mK |
| Accuracy | ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 1030°C (212°F to 1886°F) |
| Field of view [FOV] | 57° × 44° |
| Image Modes | • MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading |
| Display | 320 × 240 pixel, 2.4 in color LCD |
| Storage Media | eMMC 4 GB |
| Imaging & Optical | |
|---|---|
| Built_in Digital Camera | Yes |
| Color palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Digital image enhancement | Yes |
| Field of view [FOV] | 57° × 44° |
| Focus | Focus free |
| Gallery | Yes |
| Image Frequency | 8.7 Hz |
| Image Modes | • MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading |
| IR Resolution | 160 × 120 pixels |
| Laser | Class 1 laser indicates the temperature measurement area; button-activated |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Measurement Distance | 0.26 m (0.85 ft) |
| Spectral Range | 7.5 - 14 µm |
| Thermal Sensitivity_NETD | <70 mK |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 1030°C (212°F to 1886°F) |
| Camera size [L x W x H] | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Camera weight incl battery | 0.394 kg (13.9 oz) |
| Center spot | Yes |
| Emissivity Correction | Yes: 4 preset levels with custom adjustment of 0.1–0.99 |
| Object Temperature Range | -25°C to 1030°C (-13°F to 1886°F) |
| Set_up Commands | • Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images |
| Spot Meter | Center spot on/off |
| User Interface | |
|---|---|
| Display | 320 × 240 pixel, 2.4 in color LCD |
| Languages | Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish. |
| Communication & Data Storage | |
|---|---|
| Image Storage Capacity | 4 GB for storage of up to 50,000 pictures |
| Interfaces | USB 2.0, Bluetooth |
| Memory Type | Internal |
| Saved image format | JPEG |
| Storage Media | eMMC 4 GB |
| USB | USB Type-C: data transfer/power |
| USB_Standard | USB 2.0 High Speed |
| Power | |
|---|---|
| Battery charge life | 30 days minimum |
| Battery operating time | 5 hours continuous scanning, 4.5 hours with laser on |
| Battery Type | Rechargeable Li ion battery |
| Battery voltage | 3.7 V |
| Charging system | Battery is charged inside the camera |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | 4 hours to 90%, 6 hours to 100% |
| Power Management | Adjustable: off, 5 min., 15 min., 30 min. |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan |
| Drop test | Designed for 2 m (6.6 ft) |
| EMC | • EN 61000-6-3 • EN 61000-6-2 • FCC 47 CFR Part 15 Class B |
| Encapsulation | IP 54 (IEC60529) |
| Humidity [operating and storage] | 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F)) |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Radio Spectrum | • ETSI EN 300 328 • FCC Part 15.249 • RSS-247 Issue 2 • EN 301 489-1:2011 • EN 301 489-17:2009 |
| Safety | CE/CB/EN61010/UL |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -30°C to 55°C (-22°F to 131°F) |
| Tripod Mounting | 1/4 in.-20 on handle bottom |
| Vibration | 2 g (IEC 60068-2-6) |
| Warranty | FLIR 2-10 warranty |
| General | |
|---|---|
| Includes | TG297, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch |
