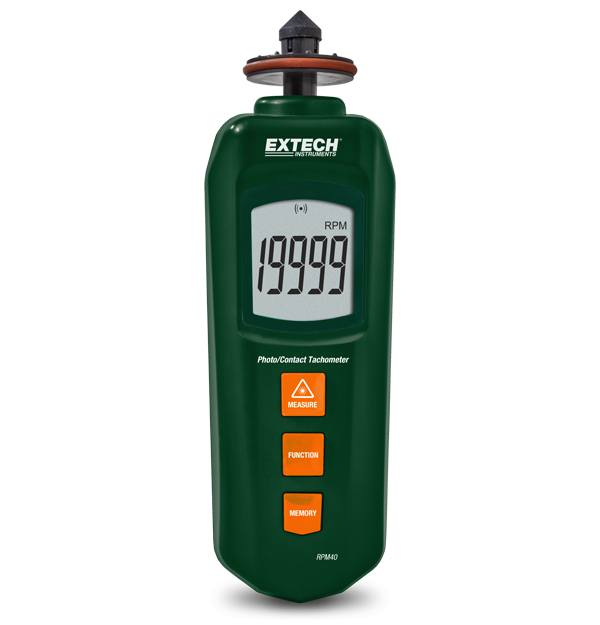

Extech RPM40
Combination Contact/Laser Photo Tachometer
The Extech RPM40 is a pocket Contact/Laser Photo Tachometer that provides wide RPM (photo/contact) and linear surface speed measurements. The characters on display reverse direction depending on which measurement mode is currently in use. The narrow beam laser photo tachometer is for accurate, non contact RPM measurements up to 1.5 m (4.9 ft) from the target for improved safety and accessibility. Complete with cone tip and wheel for RPM or linear surface speed, four 1.5 V AAA batteries, and reflective tape.
Specifications
| General | |
|---|---|
| Rotation Speed [Contact] | 0.5 to 19,999 rpm |
| Rotation Speed [Contact] Basic Accuracy | ±(0.1% of reading +1 digit) |
| Rotation Speed [Contact] Max Resolution | 0.1rpm (< 1000 rpm); 1rpm (> 1000 rpm) |
| Rotation Speed [Strobe] | 5 to 99,999 rpm |
| Rotation Speed [Strobe] Basic Accuracy | ±(0.1% of reading +1 digit) |
| Rotation Speed [Strobe] Max Resolution | 0.1rpm (< 1000 rpm); 1rpm (> 1000 rpm) |
| Sampling Time [Contact] | 1sec (> 6 rpm) |
| Sampling Time [Photo] | 1 sec (> 60 rpm) |
| Surface Speed [Contact] | 2.0 to 78,740 in/min, 0.2 to 6560 ft/min, 0.05 to 1999.9 m/min |
| Surface Speed [Contact] Basic Accuracy | ±(0.1% of reading +1 digit) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.2 × 2.0 × 1.3" (160 × 50 × 33 mm) |
| Power | 1 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 6.4oz (182g) |
Resources & Support
User Manual
Extech RPM40 User Manual
Certification
Extech RPM40 Declaration of Conformity
Datasheet
Extech RPM40 Datasheet
