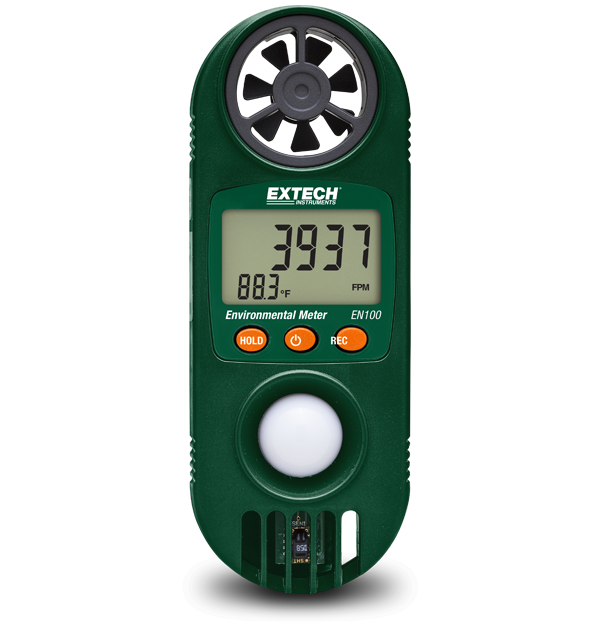

Extech EN100
11-in-1 Environmental Meter
The Extech EN100 is a compact hygro-thermo-anemometer with light sensor. The 11-in-1 Environmental Meter can be used for indoor and outdoor conditions. Built in light sensor measures light level. The auto-rotating display depending on selected function. It also measures air velocity, air flow, temperature, humidity, wet bulb, dew point, heat index, wind chill, barometric pressure and altitude. Complete with built-in multiparameter sensors, wrist strap, and a CR2032 battery.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 80 to 3940 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% full scale |
| Air Velocity [ft_min] Max Resolution | 1 ft/min |
| Air Velocity [km_h] | 1.4 to 72km/h |
| Air Velocity [km_h] Basic Accuracy | ±3%FS |
| Air Velocity [km_h] Max Resolution | 0.1km/h |
| Air Velocity [knots] | 0.8 to 38.8 knots |
| Air Velocity [knots] Basic Accuracy | ±3%FS |
| Air Velocity [knots] Max Resolution | 0.1knots |
| Air Velocity [mph] | 0.9 to 45MPH |
| Air Velocity [mph] Basic Accuracy | ±3%FS |
| Air Velocity [mph] Max Resolution | 0.1MPH |
| Air Velocity [m_s] | 0.4 to 20m/s |
| Air Velocity [m_s] Basic Accuracy | ±3%FS |
| Air Velocity [m_s] Max Resolution | 0.1m/s |
| Air Volume [CFM] | 0.847 to 1,271,300CFM |
| Air Volume [CFM] Max Resolution | 0.001CFM |
| Air Volume [CMM] | 0.024 to 36,000CMM |
| Air Volume [CMM] Max Resolution | 0.001CMM |
| Dew Point | -13.5 to 120.2°F (-25.3 to 49.0°C) |
| Dew Point Max Resolution | 0.1°F/°C |
| Heat Index | 32 to 212°F (0 to 100°C) |
| Heat Index Basic Accuracy | ±3.6°F/±2°C |
| Heat Index Max Resolution | 0.1°F/°C |
| Light [Foot Candle] | 0 to 1860Fc |
| Light [Foot Candle] Basic Accuracy | ±5% |
| Light [Foot Candle] Max Resolution | 0.1Fc |
| Light [Lux] | 0 to 20,000Lux |
| Light [Lux] Basic Accuracy | ±5% |
| Light [Lux] Max Resolution | 1Lux |
| Relative Humidity | 10 to 95% |
| Relative Humidity Basic Accuracy | ±4% |
| Relative Humidity Max Resolution | 0.1% |
| Temperature [Air] | 32 to 122°F (0 to 50°C) |
| Temperature [Air] Basic Accuracy | ±2.5˚F/±1.2˚C |
| Temperature [Air] Max Resolution | 0.1°F/°C |
| Temperature [Contact] | 15 to 111°F (-9 to 44°C) |
| Temperature [Contact] Basic Accuracy | ±2.5˚F/±1.2˚C |
| Temperature [Contact] Max Resolution | 0.1°F/°C |
| Wet Bulb | 22.3 to 120.2°F (-5.4 to 49.0°C) |
| Wet Bulb Max Resolution | 0.1°F/°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.1 × 2.4 × 1.3" (156 × 60 × 33mm) |
| Power | 1 × CR2032 (1.5V) battery |
| Vane | 1.2" (30.5mm) |
| Warranty | 2 years |
| Weight | 5oz (160g) |
Resources & Support
Certification
Extech EN100 Declaration of Conformity
User Manual
Extech EN100 EN150 User Manual
Datasheet
Extech EN100 EN150 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
