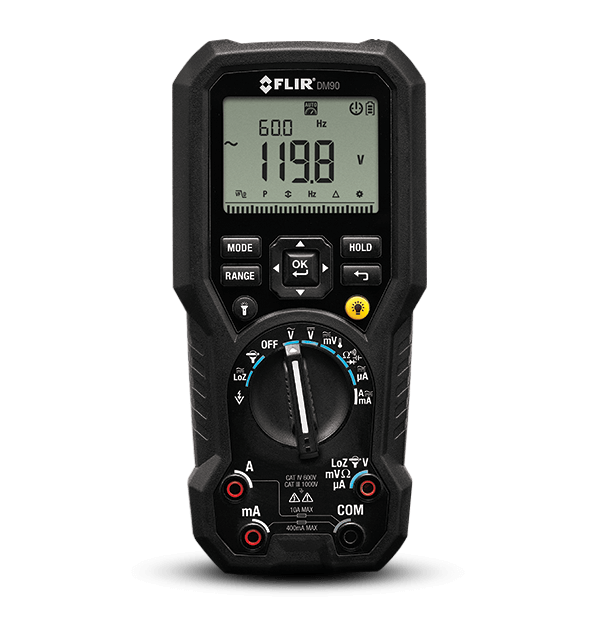

FLIR DM90
TRMS Multimeter with Type K Temp
The DM90 is an affordable True RMS digital multimeter with a Type-K Thermocouple, an ideal tool for electricians, service technicians, and HVAC professionals to have on the job. With rich features including LoZ, VFD Mode and uA current measurement capability, the DM90 gives you trusted readings to troubleshoot and repair a wide range of electrical and electronic systems. The DM90 is shipped fully tested and calibrated, and with proper use, will provide years of reliable service.
Specifications
| Highlighted | |
|---|---|
| Display Counts | 6000.0 |
| Measurement & Analysis | |
|---|---|
| Capacitance | Range: 10.00mF Basic Accuracy:1.9% |
| Category Rating | CAT IV—600 V, CAT III—1000 V |
| Continuity check | Range: 600.0 Ω Basic Accuracy: ±0.9% |
| Diode Test | 1.500 ± (0.9% + 2D) |
| Display Counts | 6000.0 |
| Frequency Counter | Range: 100.00 Hz Basic Accuracy: ±0.1% |
| Measuring Rate | 3 samples per second |
| Resistance | Range: 6.000 MΩ Basic Accuracy: ±0.9% |
| Temperature Type K thermocouple | –40 to 400°C DMM ± (1.0% + 3°C)/ IGM ± (1.0% + 5°C) |
| Power | |
|---|---|
| Battery Life | Alkaline ~110hrs, LithiumPolymer (Optional)~ 500hrs |
| Battery Type | 4x AAA |
| Maximum Voltage | 1000 V DC or 1000 V AC RMS |
| General | |
|---|---|
| Packaging Size | 32 cm x 14 cm x 11 cm (12.6 in. x 5.5 in. x 4.3 in.) |
| Environmental & Certifications | |
|---|---|
| Drop test | 3M |
| IP Rating | IP54 |
| Warranty | Limited lifetime warranty |
| Accessories | |
|---|---|
| Accessories In the Box | TA82 Premium Silicone Test Leads, TA84 Test Lead Storage/Tripod Accessory, TA70 CAT IV Insulated Alligator Probes (Slip On), TA60 Thermocouple Adapter with Type K Probe |
| Accessories Optional | TA72 Universal Flex Current Probe Accessory 25cm (10"), TA74 Universal Flex Current Probe Accessory 45cm (18"), TA04-KIT Lithium Polymer Rechargeable Battery Kit, TA15 Soft Sided Carrying Case, TA52 Magnet Mount, TA50 Magnetic Hanging Strap, TA42 Belt Clip, TA10 Protective Case for FLIR DMMs, TA10-F Protective Case for FLIR DMMs and TA7X |
Accessories
Resources & Support
User Manual
DM90 User Manual
Datasheet
DM90 And DM91 Datasheet
Brochure
Digital Multimeter Brochure
Warranty
FLIR Test And Measurement Limited Lifetime Warranty - US Only
