FLIR DM285
Industrial Imaging Multimeter with IGM™

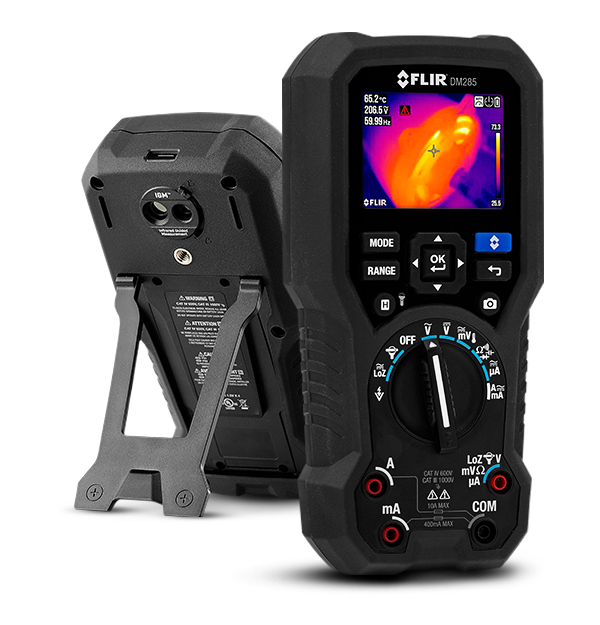

The FLIR DM285 is a professional, all-in-one True RMS digital multimeter and thermal imager. Featuring Infrared Guided Measurement (IGM) technology powered by a built-in 160 x 120 FLIR thermal imager, the DM285 visually guides you to the precise location of an electrical problem without direct contact. You’ll pinpoint hot spots faster, safer, and more efficiently. The DM285 also helps streamline inspections by connecting wirelessly to FLIR Tools® app for uploading thermal images and measurement data.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 19,200 pixels (160 x 120) |
| Display Size | 2.8" |
| AC_DC Amps | Range: 10.00 A Basic Accuracy: ±1.5% / 1.0% |
| Data Logging and Storage | 3 samples per second |
| Connectivity | Bluetooth® |
| Imaging & Optical | |
|---|---|
| Display Size | 2.8" |
| Focus | Fixed |
| FOV [w x h] | 57° × 44° |
| IR Resolution | 19,200 pixels (160 x 120) |
| Palette | Iron, Rainbow, Greyscale |
| Sensitivity | ≤150 mK |
| Thermal Imaging Detector | FLIR Lepton® microbolometer |
| Measurement & Analysis | |
|---|---|
| AC_DC Amps | Range: 10.00 A Basic Accuracy: ±1.5% / 1.0% |
| AC_DC LoZ V | Range: 1000 V Basic Accuracy: ±1.5% |
| AC_DC microAmps | Range: 4,000 µA Basic Accuracy: ±1.0% |
| AC_DC mVolt | Range: 600 mV Basic Accuracy: 1% / 0.5% |
| Capacitance | Range: 10.00 mF Basic Accuracy: ±1.9% |
| Continuity check threshold | 20Ω to 200Ω |
| Flex Clamp Range | 3000 A AC (Optional TA72/74) |
| Measuring Rate | 3 samples per second |
| Min_Max_Avg | Yes |
| Resistance | Range: Basic Accuracy: 6.000 MΩ ±0.9% 50.00 MΩ ±3.0% |
| Temperature Accuracy | 3°C or 3.5% |
| Temperature Range | 14°F to 302°F (-10°C to 150°C) |
| Temperature Type K Thermocouple Basic Accuracy | ±1.0% + 5.4°F (DMM) ±1.0% + 9°F (IGM) |
| Temperature Type K Thermocouple Range | Type K -40°F to 752°F (-40°C to 400°C) |
| True RMS | Yes |
| VFD | Range: 1000 V Basic Accuracy: ±1.0% |
| Communication & Data Storage | |
|---|---|
| Connectivity | Bluetooth® |
| Data Logging and Storage | 3 samples per second |
| Power | |
|---|---|
| AC_DC Volts | Range: 1000V Basic Accuracy: ±1.0% / 0.09% |
| Auto Power Off | Yes |
| Battery | 3 A A batteries; optional TA04 Li-Poly rechargeable battery |
| Battery Life | IGM Mode: 13 hours: Energizer L91 Lithium (Li/FeS2) ‘AA’ Battery x 3 13 hours: Optional Rechargeable Battery: Li-Polymer; FLIR PN: TA04-KIT 6 hours: Alkaline ‘AA’ Battery x 3 |
| General | |
|---|---|
| Laser Pointer | Yes |
| Size [L x W x H] | 200 × 95 × 49 mm; Weight: 537 g |
| Weight | 537 g (18.9 oz) |
| Worklights | Yes |
| Environmental & Certifications | |
|---|---|
| Drop test | 3m |
| Emissivity Settings | 4 Presets with Custom Adjustment |
| IP Rating | IP40 |
| Warranty | 10 year |
