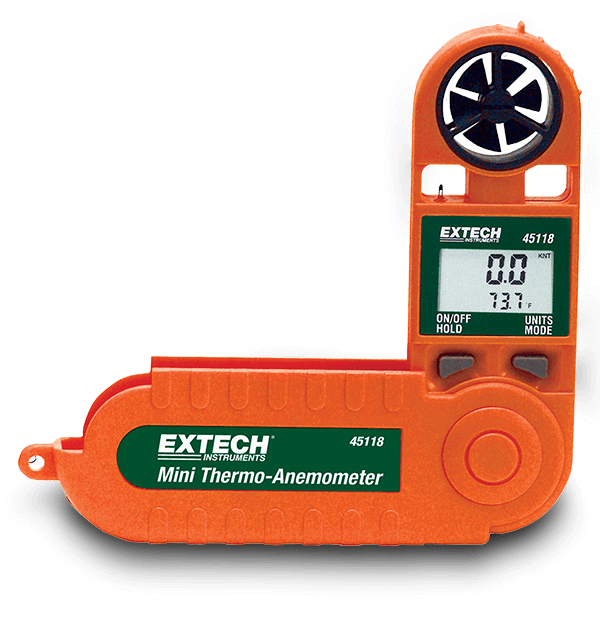

Extech 45118
Mini Thermo-Anemometer
The 45118 is a Waterproof pocket sized Thermo-Anemometer for Air Velocity, Temperature and Wind-chill measurements. Simultaneously display Air Velocity and Temperature or Wind-chill on the LCD screen. Selectable averaging function of 5, 10, or 13 second intervals. Fold up protective housing extends to 9 in. (229mm) for a better reach. Tripod mountable. Features Data Hold with Auto power off functions. Complete with battery and 43 in. lanyard.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 216 to 3936 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±(3% of reading + 40 ft/min) |
| Air Velocity [ft_min] Max Resolution | 20 ft/min |
| Air Velocity [km_h] | 4.0 to 72.0 km/h |
| Air Velocity [km_h] Basic Accuracy | ±(3% of reading + 1.4 km/h) |
| Air Velocity [km_h] Max Resolution | 0.7 km/h |
| Air Velocity [knots] | 2.1 to 38.9 knots |
| Air Velocity [knots] Basic Accuracy | ±(3% of reading + 0.6 knots) |
| Air Velocity [knots] Max Resolution | 0.3 knots |
| Air Velocity [mph] | 2.5 to 44.7 mph |
| Air Velocity [mph] Basic Accuracy | ±(3% of reading + 0.4 mph) |
| Air Velocity [mph] Max Resolution | 0.2 mph |
| Air Velocity [m_s] | 1.1 to 20 m/s |
| Air Velocity [m_s] Basic Accuracy | ±(3% of reading + 0.2 m/s) |
| Air Velocity [m_s] Max Resolution | 0.1 m/s |
| Beaufort Wind Force | 1 to 8 BF |
| Beaufort Wind Force Basic Accuracy | ±1 BF |
| Beaufort Wind Force Max Resolution | 1 BF |
| Temperature [Air] | 0 to 122°F (-18 to 50°C) |
| Temperature [Air] Basic Accuracy | ±1.8°F/±1°C |
| Temperature [Air] Max Resolution | 0.1° |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.25 × 2.75 × 0.75" (133 × 70 × 19mm) |
| Display | Segment LCD |
| Power | 1 × CR2032 (3V) battery |
| Vane | 1" (24mm) diameter |
| Warranty | 2 years |
| Weight | 3oz (95g) |
