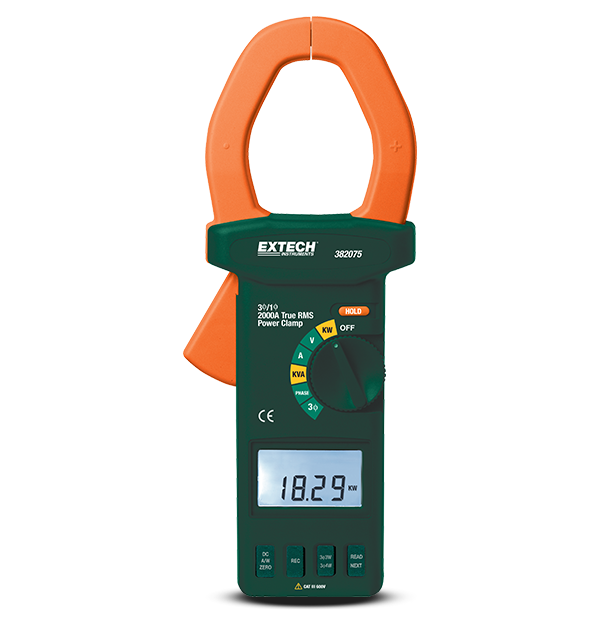

Extech 382075
2000A True RMS AC/DC 3-Phase Clamp-on Power Analyzer
The Extech 382075 is a 3-Phase True RMS Clamp-on Power Analyzer which can be used on 3 and 4 wire balanced or unbalanced loads. It can measure reactive and apparent power up to 1200 kW. Additional measurements include watts, voltage, current, frequency, power factor, and phase angle. It can display lead, lag current, and voltage phase shift in degrees, plus it can also store and recall the previous 4 readings. Additional features include DC current auto zero, data hold, min/max, and relative mode. Comes complete with test leads, carrying case, and 9 V battery.
Specifications
| General | |
|---|---|
| AC Current | 2000A |
| AC Current Basic Accuracy | ±2% of reading + 5 digits |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 600VAC |
| AC Voltage Basic Accuracy | ±2% of reading + 5 digits |
| AC Voltage Max Resolution | 0.1V |
| Apparent Power | 1200KVA |
| Apparent Power Basic Accuracy | ±2% of reading + 5 digits |
| Apparent Power Max Resolution | 0.01/0.1KVA |
| DC Current | 2000A |
| DC Current Basic Accuracy | ±2% of reading + 5 digits |
| DC Current Max Resolution | 0.1A |
| DC Voltage | 800VDC |
| DC Voltage Basic Accuracy | ±2% of reading + 5 digits |
| DC Voltage Max Resolution | 0.1V |
| Frequency | 40 to 400Hz |
| Frequency Basic Accuracy | ±1% of reading + 2 digits |
| Frequency Max Resolution | 0.1Hz |
| Phase | -90° to +90° |
| Phase Basic Accuracy | ±0.5° |
| Phase Max Resolution | 0.1° |
| Power Factor | 0.2 to 1 |
| Power Factor Basic Accuracy | PF=W/(V×A) |
| Power Factor Max Resolution | 0.01 |
| Reactive Power | 1200KVAR |
| Reactive Power Basic Accuracy | ±2% of reading + 5 digits (PF<0.91) |
| Reactive Power Max Resolution | 0.01/0.1KVAR |
| True Power | 1200kW |
| True Power Basic Accuracy | ±2% of reading + 5 digits |
| True Power Max Resolution | 0.01/0.1kW |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 10.7 × 4.8 × 1.8" (271 × 122 × 46mm) |
| Safety Category | CAT III-600V |
| Warranty | 2 years |
| Weight | 24.7oz (700g) |
