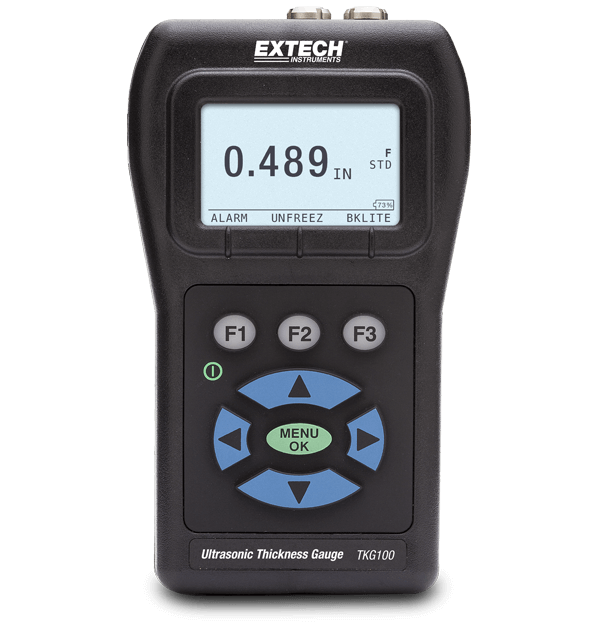

Extech TKG100
Digital Ultrasonic Thickness Gauge
The Extech TKG100 offers Thickness Gauges designed in compact, handheld, rugged housing ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. It includes multiple transducer options for high temperature and difficult to measure materials. Complete with 2oz bottle of coolant, 2 AA batteries, 5 MHz Transducer, and hard carrying case.
Specifications
| General | |
|---|---|
| Material Velocity Calibration | 0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS) |
| Steel Thickness | 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm) |
| Additional Details | |
|---|---|
| Certifications | CE |
| IP Rating | IP54 |
| Power | 2 × AA (1.5V) batteries |
| Warranty | 2 years |
Resources & Support
Certification
Extech TKG100 Declaration of Conformity
User Manual
Extech TKG100 TKG150 User Manual
Datasheet
Extech TKG100-TKG150-TKG250 Datasheet
Quick Start Guide
Extech TKG100 TKG150 TKG250 Quick Start Guide
