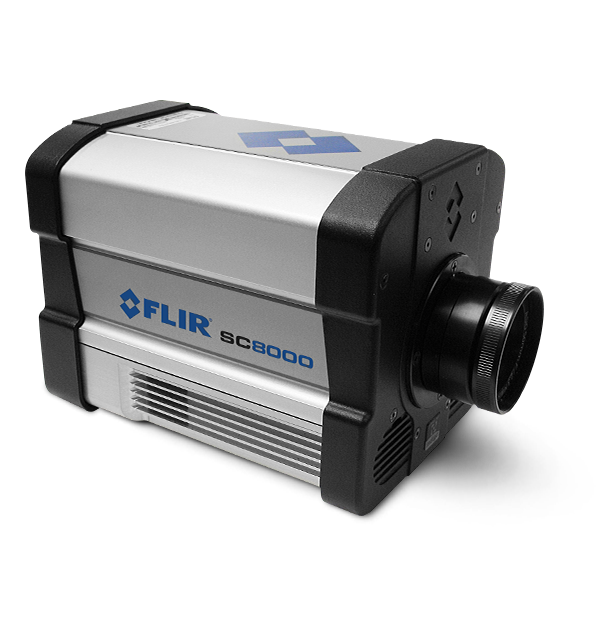

FLIR SC8000 HD
High Speed MWIR Megapixel Science-Grade Infrared Camera
The FLIR SC8200 has a highly sensitive cooled FLIR InSb detector that offers 1,024 × 1,024 true megapixel resolution to produce ultra-sharp thermal images from which the smallest details can be seen and measured. Four active preset operating modes provide adjustable integration times, embedded non-uniformity correction, bad pixel replacement, and window size adjustments. The FLIR readout provides digital data at 200 megapixels per second for extreme imaging flexibility.
Specifications
| Highlighted | |
|---|---|
| Resolution | 1,024 × 1,024 |
| Detector Pitch | 18 µm |
| Spectral Range | 3.0 – 5.0 µm or 1.5 – 5.0 µm |
| Detector Type | FLIR Indium Antimonide (InSb) |
| Camera f_number | f/4.0 |
| Dynamic Range | 14-bit |
| NETD | <25 mK |
| Frame Rate [Full Window] | 129 Hz |
| Integration Time | 500 ns to Full Frame |
| Standard Temperature Range | -20°C to 350°C (-4°F to 662°F ) |
| Optional Temperature Range | Up to 1,500°C (2,732°F ) Up to 2,000°C (3,632°F ) |
| Filtering | Behind-the-Lens |
| Focus | Manual (Motorized & Tactile – Lens Dependant) |
| Imaging & Optical | |
|---|---|
| Available Lenses | 17 mm, 25 mm, 50 mm, 100 mm, 1000 mm TFOV (50 / 250 / 500 mm) Continuous Zoom (50 / 500 mm) |
| Camera Control | Gigabit Ethernet, USB, RS-232, Camera Link Full (or CXP) |
| Camera f_number | f/4.0 |
| Close_up Lenses_Microscopes | NA |
| Detector Pitch | 18 µm |
| Detector Type | FLIR Indium Antimonide (InSb) |
| Digital Data Streaming | Simultaneous Gigabit Ethernet and Camera Link Full (or CoaXPress) |
| Dynamic Range | 14-bit |
| Filtering | Behind-the-Lens |
| Focus | Manual (Motorized & Tactile – Lens Dependant) |
| Frame Rate [Full Window] | 129 Hz |
| HD Video | HD-SDI 720p50/59/60 1080p25/29/30 |
| Image Time Stamp | Internal IRIG-B Decoder Clock / TSPI Accurate Time Stamp |
| Integration Time | 500 ns to Full Frame |
| NETD | <25 mK |
| Operability | >99.5% ( >99.9% typical) |
| Overlay | Customizable ( IRIG-B, Date, Integration Time, Internal Temp, Frame Rate, Sync Mode, Cooler Hours) |
| Palette | Selectable 8-bit |
| Readout | Snapshot |
| Readout Modes | Asynchronous Integrate While Read; Asynchronous Integrate Then Read |
| Resolution | 1,024 × 1,024 |
| Sensor Cooling | Closed Cycle Linear |
| Spectral Range | 3.0 – 5.0 µm or 1.5 – 5.0 µm |
| Subwindow Modes | Flexible (steps of 64 columns, 8 rows) |
| Well Capacity | 12.1 M electrons |
| Zoom | 1-4x , Digital Zoom, Panning |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C or ±2% of Reading |
| Automatic Gain Control | Manual, Linear, Plateau Equalization, ROI, DDE |
| Optional Temperature Range | Up to 1,500°C (2,732°F ) Up to 2,000°C (3,632°F ) |
| Standard Temperature Range | -20°C to 350°C (-4°F to 662°F ) |
| Communication & Data Storage | |
|---|---|
| Analog Video | NTSC, PAL, S-Video, SVGA |
| Synchronization Modes | Genlock; IRIG-B; Sync In, Sync Out, Trigger In |
| General | |
|---|---|
| Size [L x W x H ] w_o Lens | 218 × 143 × 158 mm (8.6 × 5.64 × 6.21 in) |
| Weight [without lens] | 4.5 kg (10 lb) |
| Power | |
|---|---|
| Power | 24 VDC |
| Environmental & Certifications | |
|---|---|
| Altitude | 0 to 40,000 Feet Operational; 0 to 70,000 Feet Non-Operational |
| Mounting | 2 × ¼”-20, 1 × 3/8”– 16, 4 × 10/24 |
| Operating Temperature Range | -40°C to 50°C (-40°F to 122°F) |
| Shock and Vibration | 40 g, 11 msec ½ Sine Pulse / 4.3 g RMS Random Vibration, All 3 Axis |
| Storage Temperature Range | -55°C to 80°C (-67°F to 176°F) |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
