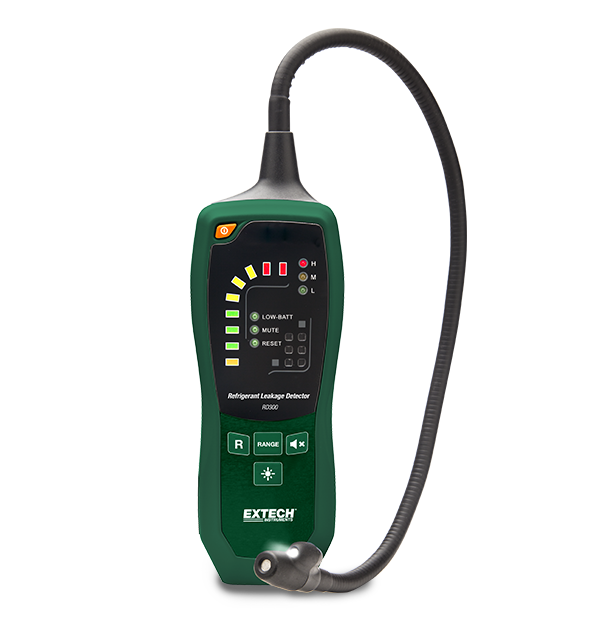

Extech RD300
Refrigerant Leak Detector
The Extech RD300 Refrigerant Leak Detector detects leakages from air-conditioning units and cooling systems. It is easy to use and ideal for detecting leaks from air-conditioning units and cooling systems that use all standard refrigerants. The multi-colored LED light bar indicates the level of leaking refrigerant detected by the RD300. The built-in, bright LED convenience light located at the sensor tip illuminates dimly lit inspection areas. Complete with leak test bottle, 9 V battery, and protective hard carrying case.
Specifications
| General | |
|---|---|
| Gas Detection | R‐22, R‐134a, R‐404a, R‐410a, and all CFCs, HCFCs and HFCs |
| Gas Detection Sensitivity | High: 0.25oz/yr (7g/yr); Medium: 0.5oz/yr (14g/yr); Low: 0.99oz/yr (28g/yr) |
| Probe Length | 450mm (18") |
| Sensor Type | Heated Diode |
| Warm_up Time | 90 seconds |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.2 × 2.8 × 1.6" (184 × 70 × 40mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 10.0 oz (280g) |
