ioi SD Fixed Cameras
Day and Night, Inside and Out

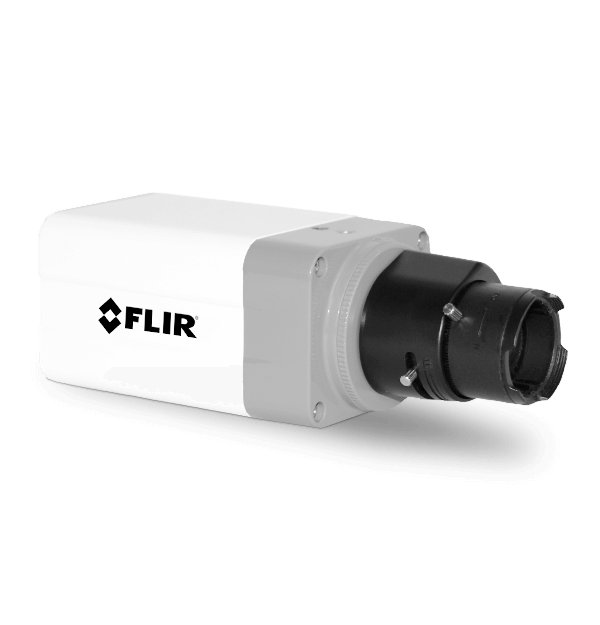

The SC1DN-S is a compact, self-contained day/night IP camera that doesn't require additional components for video analysis. The camera analyzes captured video signals and sends alarms when people, vehicles or objects cross perimeters, enter pre-defined regions, are left behind or removed from a scene. Users can set customizable rules and criteria to define specific regions and what to detect.
Specifications
| Compliance & Certifications | |
|---|---|
| Safety | UL, CE |
| Environmental | |
|---|---|
| EMC | FCC 47 CFR Part 15, Subpart B, Class A; CE Class A |
| Environmental | RoHS |
| Operating Humidity | 5% to 90% (non-condensing) |
| Operating Temperature | 0° to 50°C (32° to 122°F) |
| General | |
|---|---|
| Dimensions [W x H x D] | 73 x 60 x 133 mm/2.87 x 2.36 x 5.24" |
| H.264 Frame Rate [PAL_NTSC] | MPEG-4 SP: up to 30 FPS for all resolutions; H.264: up to 25/30 FPS for CIF and 2CIF, 18 FPS for VGA, and 12/15 FPS for D1 and 4CIF |
| Noise | Dynamic range up to 82 dB |
| Number of Intelligent Video Analysis Channels | 1.0 |
| Operating System | Windows XP, 7, 8, and 8.1 |
| Power Consumption | 3.6W @ 12VDC; 6W @ 24VAC |
| Storage on the Edge | 3,800Mb event recording |
| Voltage | 12VDC, 24VAC |
| System Integration | |
|---|---|
| Alarm In | 1x dry contact |
| Alarms_Commands | TCP/IP, HTTP |
| Browsers | Internet Explorer 8, 9, 10, and 11 |
| Ethernet [IEEE 8023_8023u] | 1x Ethernet RJ45 interface |
| OUT_Relay Output | 1x relay output (rated load 0.3A@30VDC) |
| Physical Connector | 1x BNC 75Ω |
| Services and Protocols | TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP |
| TV Standard | Composite 1Vp-p - NTSC or PAL |
| Thermal Camera | |
|---|---|
| Lens Mount | CS lens mount Optional C mount adapter |
| Visible Camera | |
|---|---|
| Backlight Compensation | On/ Of |
| Exposure | Auto DC iris control, Automatic gain control (AGC) |
| IR Cut Filter | Auto/manual |
| Maximum Resolution per Channel | VGA |
| Sensor | 1/4" CMOS image sensor; 540 HTVL, 640 (H) x 480 (V) effective pixels (NTSC or PAL) |
| Sensor Resolution | 640 x 480 |
| Video & Recording | |
|---|---|
| Bit Rate | CBR, VBR |
| IP Video Streaming | H.264, MPEG-4 SP, MJPEG |
| Video Streaming | RTP/RTSP |
