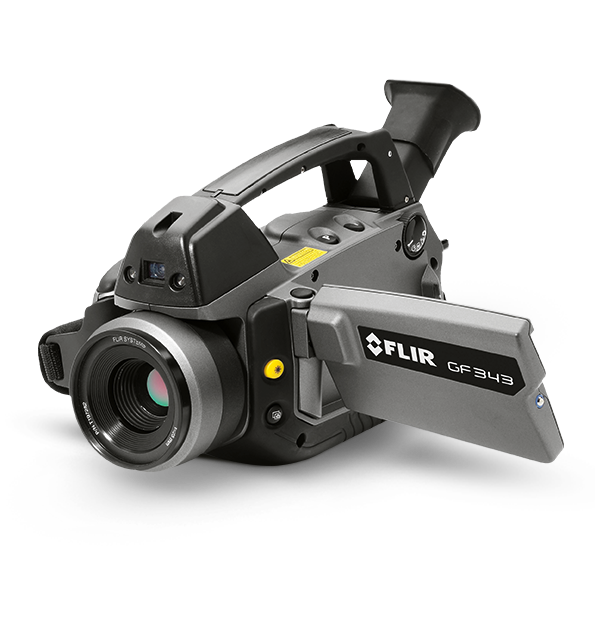

FLIR GF343
Optical Gas Imaging Camera
The FLIR GF343 is an optical gas imaging camera that lets you see carbon dioxide leaks quickly, easily, and from a safe distance. Whether CO2 is a byproduct of a production process, a trace gas used to detect hydrogen leaks from power generators, or part of an enhanced oil recovery program, fast and accurate detection of CO2 is key to keeping your operation running safely, efficiently, and profitably.
Specifications
| Highlighted | |
|---|---|
| Detector Pitch | 30 µm |
| NETD | < 15 mK @ +30°C (+86°F) |
| Accuracy | NA |
| Spectral Range | 4.2 – 4.4 µm |
| Hazardous Location Compliance | NA |
| Imaging & Optical | |
|---|---|
| Available Fixed Lenses | 14.5° (38 mm), 24° (23 mm) |
| Camera Control | Remote camera control via USB |
| Camera f_number | f/1.5 |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Pitch | 30 µm |
| Detector Type | Focal plane array, cooled InSb |
| Dynamic Range | 14-bit |
| Focus | Automatic (one touch) or manual (electric or on the lens) |
| Frame Rate [Full Window] | 60 Hz |
| Image Modes | IR image, visual image, High Sensitivity Mode (HSM) |
| Menu Commands | Level/span, auto adjust continuous/manual/semi-automatic, zoom, palette, start/stop recording, store image, playback/recall image |
| NETD | < 15 mK @ +30°C (+86°F) |
| On Camera Display | Built-in widescreen, 4.3 in. LCD, 800 x 480 pixels |
| Resolution | 320 x 240 pixels |
| Sensor Cooling | Stirling Microcooler (FLIR MC-3) |
| Spectral Range | 4.2 – 4.4 µm |
| Total Pixels | 76,800 |
| Video Recording and Streaming | Real-time non-radiometric recording: MPEG4/H.264 (up to 60 min./clip) to memory card Real-time non-radiometric streaming: RTP/MPEG4 |
| Visual Image | 3.2 MP from integrated visible camera |
| Visual Video | MPEG4 (25 min./clip) to memory card |
| Zoom | 1-8x continuous, digital zoom |
| Measurement & Analysis | |
|---|---|
| Accuracy | NA |
| Automatic Gain Control | Continuous/manual, linear, histogram |
| Bump_Vibration | 25 g (IEC 60068-2-27) / 2 g (IEC 60068-2-6) |
| Standard Temperature Range | NA |
| Communication & Data Storage | |
|---|---|
| Image Storage Capacity | >1200 images (JPEG) with post-process capability per GB on memory card |
| Storage Media | Removable SD or SDHC memory card; two card slots |
| General | |
|---|---|
| Packaging Size | 400 x 190 x 510 mm (15.7 x 7.5 x 20.1 in.) |
| Size [L x W x H ] w Lens | 306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.) |
| Weight [incl lens & batteries] | 2.48 kg (5.47 lb.) |
| Power | |
|---|---|
| Battery System | Rechargeable Li-ion battery |
| Power | AC adapter 90-260 VAC, 50/60 Hz or 12 V from a vehicle |
| Environmental & Certifications | |
|---|---|
| Encapsulation | IP 54 (IEC 60529) |
| Hazardous Location Compliance | NA |
| Mounting | Standard, 1/4"-20 |
| Operating Temperature Range | –20°C to 50°C (–4°F to 122°F) |
| Storage Temperature Range | –30°C to 60°C (–22°F to 140°F) |
