FLIR T560-EST
Handheld FLIR EST™ Thermal Screening Solutions

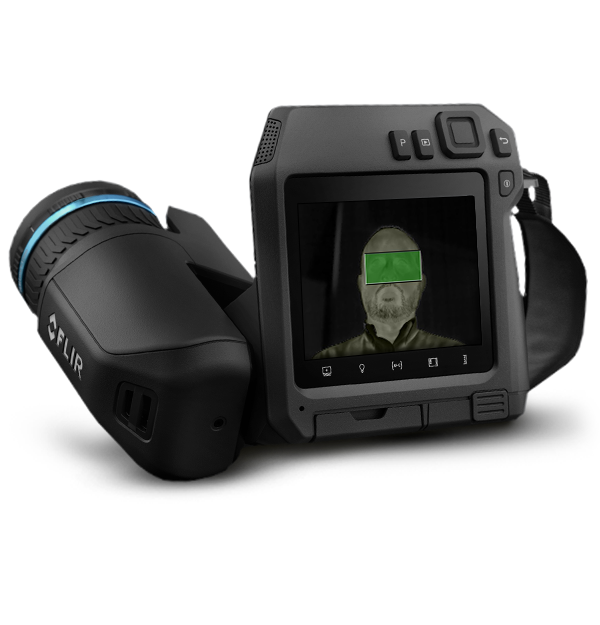

The FLIR T560-EST handheld thermal camera is a non-contact screening tool that serves as a first line of defense against potential health risks. This FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. Battery-powered and featuring an integrated touchscreen display, the T560-EST sets up quickly and easily for operation in temporary or mobile screening settings. The on-camera FLIR Screen-EST Mode offers visual positioning guides, automatic sampling to maintain an updated temperature average, and graphic pass/fail indicators for results, reducing the burden on screening station operators. A 640 × 480 pixel detector offers the highest thermal resolution in this line of handheld FLIR EST cameras, for superior measurement accuracy. Compatibility with FLIR Screen-EST Desktop software makes this camera a good fit for permanent installations as well.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 640 × 480 |
| Field of view [FOV] | 42° × 32° |
| Image Modes | Infrared, visual |
| Display | 4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness |
| Storage Media | Removable SD card (8 GB) |
| Imaging & Optical | |
|---|---|
| Camera f_number | 1.1 |
| Camera software update | Using USB cable or SD card |
| Color | Black |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Data Streaming | USB Type-C |
| Digital Zoom | 1-8x continuous |
| Field of view [FOV] | 42° × 32° |
| Focal Length | 10 mm (0.39 in) |
| Focus | Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Frame Rate | 30 Hz |
| Image Modes | Infrared, visual |
| IR Resolution | 640 × 480 |
| Lens | 42° |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m (0.49 ft) |
| MSX | Yes |
| Palette | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Screen EST Mode | |
| Spatial resolution [IFOV] | 1.2 mrad/pixel |
| Spectral Range | 7.5–14 µm |
| Thermal Sensitivity_NETD [typical] | <30 mK @ 30°C (86°F) |
| UltraMax | Yes |
| Viewfinder | No |
| Measurement & Analysis | |
|---|---|
| Accuracy [Drift] in Screen EST Mode | |
| Automatic hot and cold detection | Auto-maximum/minimum markers within area |
| Emissivity Correction | Yes: variable from 0.01 to 1.0 or selected from materials list |
| Measurement Corrections | Yes |
| Object Temperature Range | 15°C to 45°C (59°F to 113°F) |
| Reference Temperature | Yes |
| Sampling Average in Screen EST Mode |
| User Interface | |
|---|---|
| Display | 4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness |
| Display Technology | IPS |
| Languages | 21 |
| Communication & Data Storage | |
|---|---|
| Command and Control | On-camera screen, USB Type-C |
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi |
| Image File Format | Standard radiometric JPEG, measurement data included |
| Storage Media | Removable SD card (8 GB) |
| USB | USB Type-C: data transfer/video/power |
| USB_Standard | USB 2.0 High Speed |
| Video Out | DisplayPort over USB Type-C |
| WiFi | Peer to peer (ad hoc) or infrastructure (network) |
| Power | |
|---|---|
| Battery Type | Rechargeable Li ion battery |
| Battery voltage | 3.6 V |
| Battery weight | 195 g (6.89 oz) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| External Power Operation | USB 2.0 A to USB Type-C with Power supply |
| Power Management | No |
| Environmental & Certifications | |
|---|---|
| Drop | Designed for 2 m (6.6 ft) |
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Radio Spectrum | ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2 |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC ¼"-20 |
| Warranty | http://www.flir.com/warranty/ |
| General | |
|---|---|
| Housing material | PCABS with TPE, magnesium |
| Packaging | Infrared camera with lens, front and rear lens caps, cleaning cloth, rechargeable battery (2 ea.), battery charger, power supplies, straps (lens cap, neck), hard transport case, cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C,USB Type-C to HDMI and PD adapter), USB-C to USB-A with power supply included, remote operation button, 8 GB SD card, printed documentation |
| Size [L x W x H] | Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in) |
| Weight | 1.3 kg (2.9 lb) |
