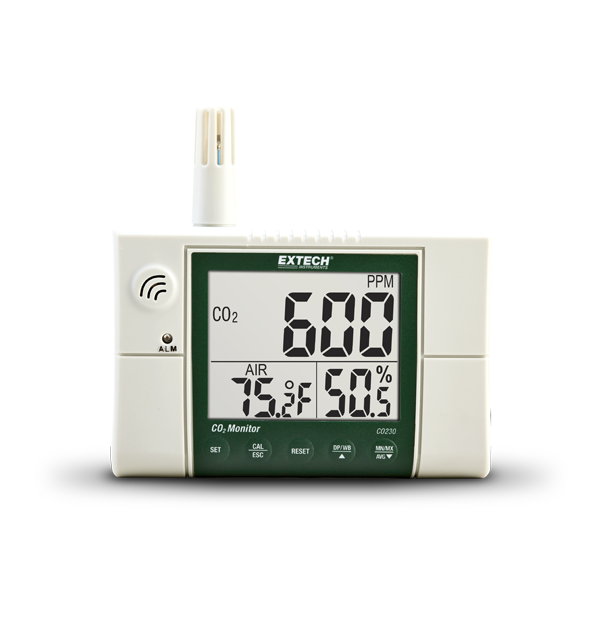

Extech CO230
Indoor Air Quality, Carbon Dioxide (CO2) Monitor
The Extech CO230 measures carbon dioxide (CO₂), air temperature, and humidity. It features automatic baseline calibration (ABC) with disable for use in areas with continuously elevated CO2 levels. Its alarm function with user settable high/low CO2 level is perfect for monitoring air quality and ensuring proper air ventilation in conference rooms, schools, greenhouses, factories, hotels, hospitals and anywhere that high levels of carbon dioxide are generated. The CO230 also calculates dew point and wet bulb values, min/max CO2 value recall, and statistical weighted averages of TWA (eight hour time weighted average) and STEL (15 minute short term exposure limit). Alarm relay output for ventilation control and wall mount. Complete with Universal AC adaptor and multiple plug types (US, EU, UK, AUS).
Specifications
| General | |
|---|---|
| Carbon Dioxide [CO2] | 0 to 9,999ppm |
| Carbon Dioxide [CO2] Max Resolution | 1ppm |
| Dew Point | -4 to 140 °F (-20 to 60 °C) |
| Dew Point Max Resolution | 0.1 °F/ °C |
| Relative Humidity | 0.1 to 99.9% |
| Relative Humidity Max Resolution | 0.10% |
| Temperature [Air] | 14 to 140°F (-10 to 60°C) |
| Temperature [Air] Max Resolution | 0.1°F/°C |
| Wet Bulb | 23 to 140 °F (-5 to 60 °C) |
| Wet Bulb Max Resolution | 0.1 °F/ °C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.1 × 3.4 × 2.4" (130 × 85 × 60mm) |
| Warranty | 2 years |
| Weight | 7.2oz (204g) |
Resources & Support
User Manual
Extech CO230 User Manual GB
Certification
Extech CO230 Declaration of Conformity
Datasheet
Extech CO230 Datasheet
