Discontinued

FLIR CM78

1000 Amp Clamp with IR Thermometer

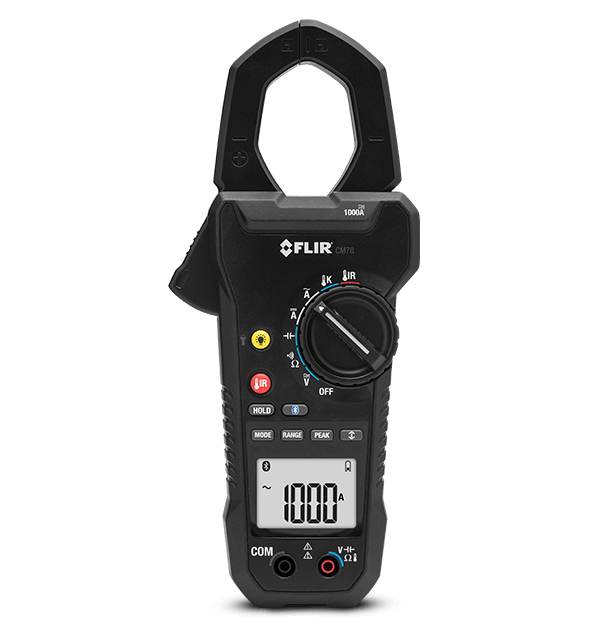

Product view 1

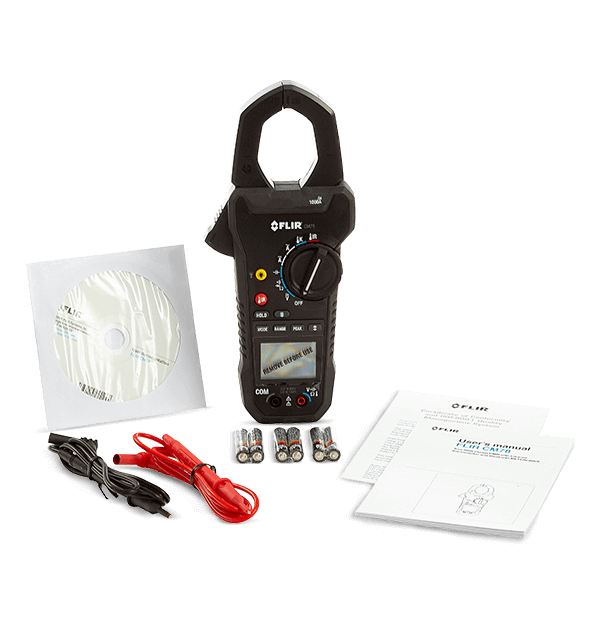

Product view 2

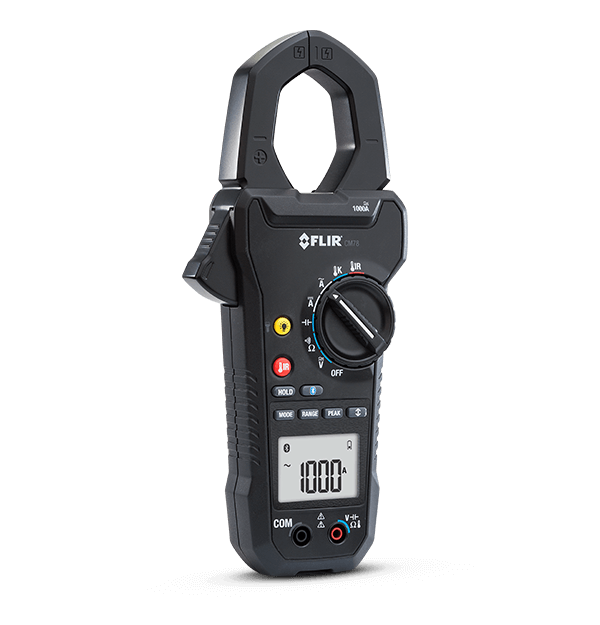

Product view 3

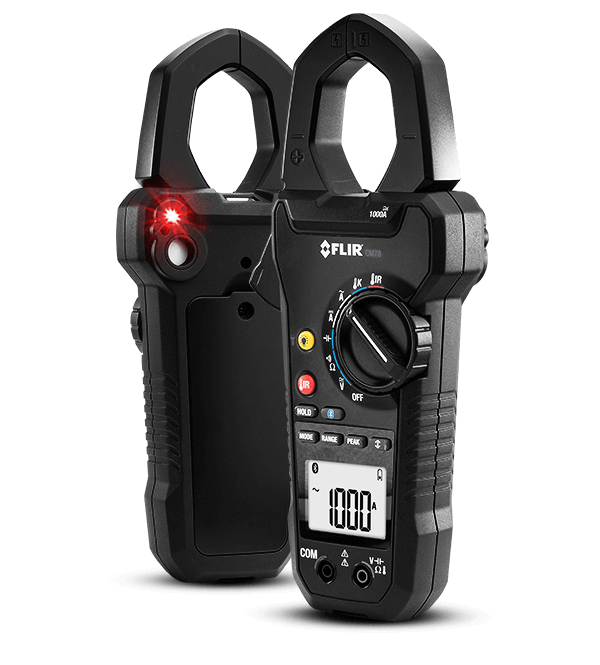

Product view 4

The FLIR CM78 is a True RMS industrial clamp meter for the electrician who works on high-powered equipment and temperature systems and needs a safe, capable combination tool. An integrated IR thermometer provides fast non-contact measurements on panels, conduits, and motors. FLIR Tools Mobile connects the FLIR CM78 to your compatible smartphones and tablets via Bluetooth®, and METERLiNK® technology wirelessly integrates electrical readings on your infrared image with FLIR thermal cameras.

YOUR GO-TO ELECTRICAL COMBINATION TOOL
Combines a True RMS digital multimeter, non-contact clamp meter, and spot IR thermometer into one tool.
Take accurate AC/DC measurements safely and quickly on high-powered equipment or complex machinery, and verify readings with the Type-K thermocouple.
Features Bluetooth METERLiNK to wirelessly embed data into thermal images from FLIR infrared cameras, or instantly share readings with clients.

Specifications

Highlighted
Jaw Opening 42 mm (1.7 in, 2000MCM)
AC_DC Voltage Range 1000 V / Basic Accuracy +/- 1.5%
Safety Category CAT IV-600V, CAT III-1000V
Measurement & Analysis
AC_DC Current Range Range 1000 A / Basic Accuracy +/- 2.5%
AC_DC Voltage Range 1000 V / Basic Accuracy +/- 1.5%
Capacitance Range 4.000 mF / Basic Accuracy +/- 3%
Frequency Range 4000 Hz / Basic Accuracy +/- 31.5
IR Distance to Target Ratio 8 : 1 in
Resistance Range 40.00 MΩ / Basic Accuracy +/- 1.5%
Temperature [IR] Range -4 to 518°F, -20 to 270°C / Basic Accuracy +/- 2%
Temperature [Type K] Range -4 to 1400°F, -20 to 760°C / Basic Accuracy +/- 3%
Communication & Data Storage
Bluetooth range max 32 ft (10 m)
Power
Battery 3 AA batteries; optional TA04 Li-Poly rechargeable battery
General
Jaw Opening 42 mm (1.7 in, 2000MCM)
Environmental & Certifications
Certifications CE, UL, FCC
Safety Category CAT IV-600V, CAT III-1000V
Warranty Limited Lifetime*

Accessories

  1. NiMH Rechargeable Battery Kit (TA03-KIT)
  1. Universal Soft Sided Case (TA15)
  2. Protective Case (TA11)
  1. CAT IV Insulated Alligator Probes (TA70)
  2. CAT IV Silicone Test Leads (TA80)
  3. AC Current Line Splitter (TA55)
  4. Thermocouple Probe with Adapter (TA60)
