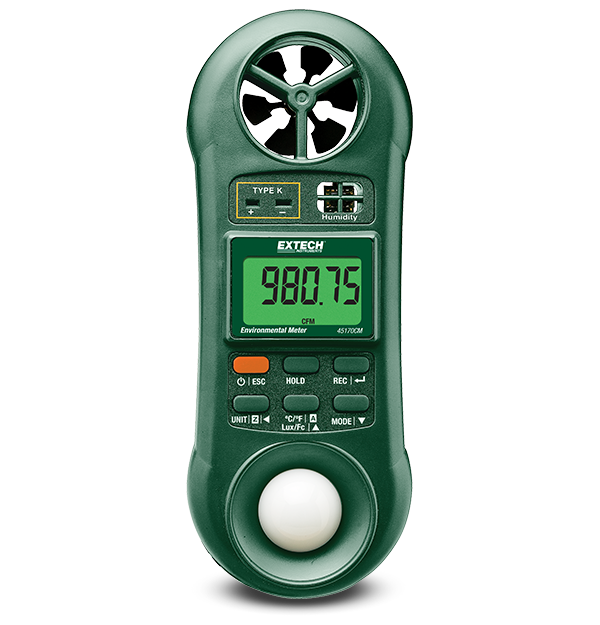

Extech 45170CM
5-in-1 Environmental Meter
The Extech 45170CM is a convenient 5-in-1 Environmental Meter which measures air velocity, air volume, humidity, temperature, and light. It features ergonomic housing design with a large dual smart LCD where characters on display reverse direction depending on the function in use. Other features include data hold, min/max, auto power off functions. This multi-functional meter is ideal for professional or home use in testing the environmental quality in a building. Complete with built-in sensors, wrist strap and a 9 V battery.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 80 to 5910 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% full scale |
| Air Velocity [ft_min] Max Resolution | 1ft/min |
| Air Velocity [km_h] | 1.4 to 108km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% full scale |
| Air Velocity [km_h] Max Resolution | 0.1km/h |
| Air Velocity [knots] | 0.8 to 58.3 knots |
| Air Velocity [knots] Basic Accuracy | ±3% full scale |
| Air Velocity [knots] Max Resolution | 0.1knots |
| Air Velocity [mph] | 0.9 to 67MPH |
| Air Velocity [mph] Basic Accuracy | ±3% full scale |
| Air Velocity [mph] Max Resolution | 0.1MPH |
| Air Velocity [m_s] | 0.4 to 30m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% full scale |
| Air Velocity [m_s] Max Resolution | 0.1m/s |
| Air Volume [CFM] | 0.01 to 1,908,400CFM |
| Air Volume [CFM] Max Resolution | 0.001CFM |
| Air Volume [CMM] | 0.001 to 54,000CMM |
| Air Volume [CMM] Max Resolution | 0.001CMM |
| Light [Foot Candle] | 0 to 1860Fc |
| Light [Foot Candle] Basic Accuracy | ±(5% of reading + 8 digits) |
| Light [Foot Candle] Max Resolution | 0.1Fc |
| Light [Lux] | 0 to 20,000Lux |
| Light [Lux] Basic Accuracy | ±(5% of reading + 8 digits) |
| Light [Lux] Max Resolution | 1Lux |
| Relative Humidity | 10 to 95% |
| Relative Humidity Basic Accuracy | ±4% |
| Relative Humidity Max Resolution | 0.10% |
| Temperature [Air] | -148°F to 2372°F (-100°C to 1300°C) |
| Temperature [Air] Basic Accuracy | ±(1% of reading +2°F/1°C) |
| Temperature [Air] Max Resolution | 0.1° |
| Temperature [Type K] Max Resolution | -148°F to 2372°F (-100°C to 1300°C) |
| Temperature [Type N] | ±2.5°F (1.2°C) |
| Temperature [Type N] Basic Accuracy | 0.1° |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.1 × 2.4 × 1.3" (156 × 60 × 33mm) |
| Power | 1 × 9V battery |
| Vane | 1.2" (31mm) |
| Warranty | 2 years |
| Weight | 5oz (160g) |
